Din X Mmetric Es Seal Complete

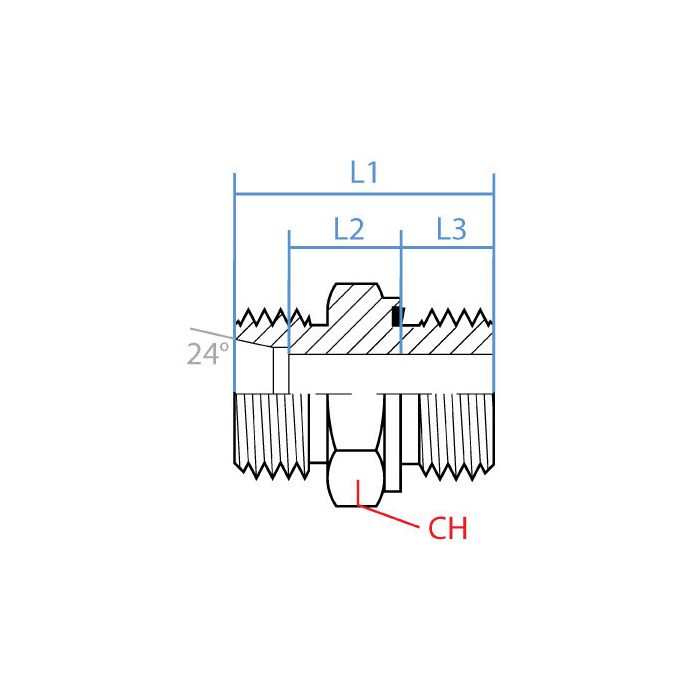

CH Width 27mm	L1 Length 41mm	L2 Length 18.5mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068S-16-22C	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a DIN tube end into a metric thread port, is this the right adapter?

Question by: Janice C on Jul 30, 2025, 7:38 PM

For that kind of transition, it matches a DIN tube end on one side and a metric threaded end on the other. Side 1 is a DIN tube fitting end with M24 x 1.5 male threads in size S16, and side 2 is a metric male M22 x 1.5 end sized for 22 mm.

Answer by: Customer Support on Aug 1, 2025, 7:39 AM

Will this adapter work to connect a DIN fitting to a metric one?

Question by: Rick G on May 18, 2025, 9:26 PM

That's precisely what it's for. This adapter allows you to connect a DIN tube end to a metric thread connection in hydraulic line assemblies.

Answer by: Customer Support on May 20, 2025, 10:38 AM
