Din X Male Metric W/Es Seal

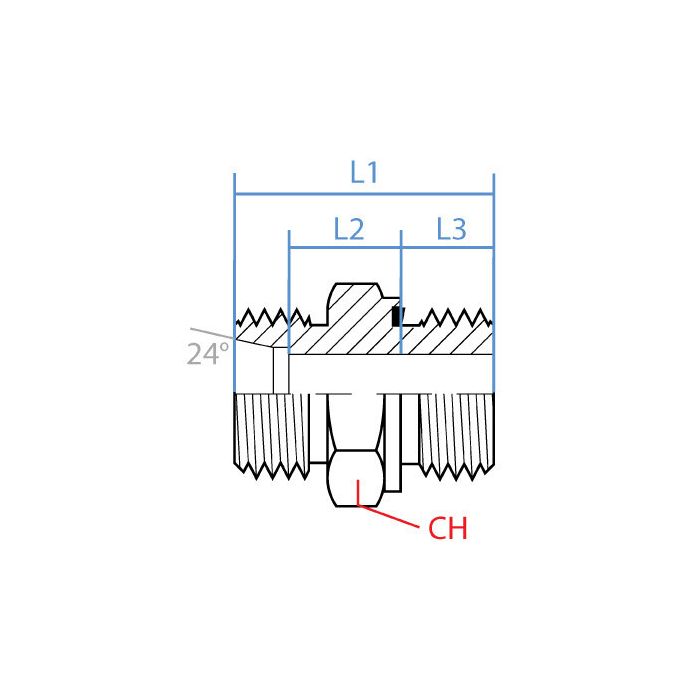

CH Width 50mm	L1 Length 48mm	L2 Length 17.5mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M45 X 2.0	Side 1 Gender M	Side 1 Size L35	Side 1 Type Din Tube	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size 42mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-35-42	Product Weight 0.66 lbs

Product Questions & Answers 2

Product Questions & Answers

So, this here is steel, right? Just making sure it can handle what I need it for.

Question by: Clint R on Aug 11, 2025, 4:29 PM

Correct, this Adaptall fitting is manufactured from steel for durability. It's designed to withstand typical hydraulic pressures associated with its size and connection types.

Answer by: Customer Support on Aug 13, 2025, 6:58 AM

got a DIN tube line that’s L35 with an M45 x 2.0 nut, will this straight adapter match up on that end?

Question by: Hubert B on Aug 24, 2025, 9:22 PM

On the DIN tube side, it is a male connection sized L35 with an M45 x 2.0 thread callout, so it matches a DIN tube connection with those same size and thread details.

Answer by: Customer Support on Aug 26, 2025, 7:53 AM
