Din X Male Metric W/Es Seal 5068L-28-33

Specifications

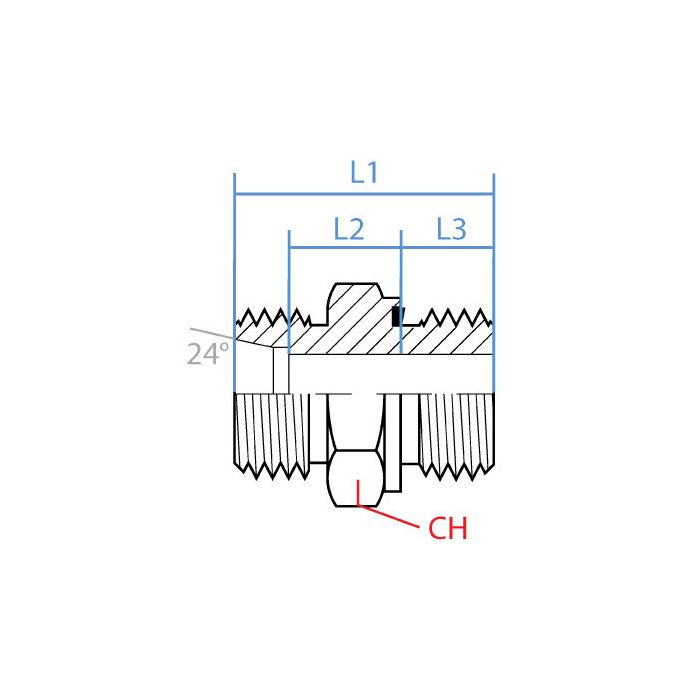

CH Width 41mm	L1 Length 43mm	L2 Length 17.5mm	L3 Length 18mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-28-33	Product Weight 0.38 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's got an M36 x 2.0 on one end and M33 x 2.0 on the other -- that right? just want to make sure before i order a handful of these

Question by: Ralph W on Dec 10, 2025, 9:05 PM

Correct on both counts. Side one is a DIN Tube connection at M36 x 2.0 and side two is a Metric connection at M33 x 2.0. Both sides are male, so plan accordingly when you're putting together your assembly.

Answer by: Customer Support on Dec 12, 2025, 6:36 AM

What kind of steel is this fitting made out of?

Question by: Denise S on Jun 19, 2025, 12:03 PM

Crafted from high-quality steel, this fitting offers enhanced durability and resistance against corrosion, contributing to its longevity in harsh environments.

Answer by: Customer Support on Jun 20, 2025, 4:30 PM

got a machine with a DIN tube end that’s M36 x 2.0, will this fitting mate up to it and step over to M33 x 2.0 on the other side?

Question by: Duane P on Feb 21, 2026, 8:10 PM

The ends are a male DIN Tube connection in M36 x 2.0 on one side and a male Metric connection in M33 x 2.0 on the other, so it is meant to bridge those two thread sizes in a straight adapter.

Answer by: Customer Support on Feb 23, 2026, 12:14 PM
