Din X Male Metric W/Es Seal

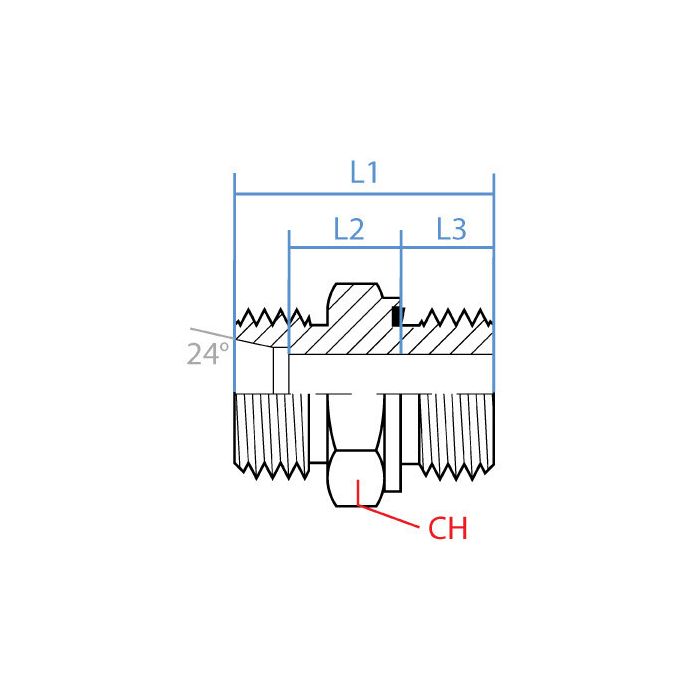

CH Width 32mm	L1 Length 40mm	L2 Length 16.5mm	L3 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size 26mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-22-26	Product Weight 0.24 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to tie a DIN tube line into a metric port, is this the right kind of adapter for that?

Question by: Ralph A on May 3, 2025, 8:56 PM

Made for mixing thread standards, it bridges an M30 x 2.0 male DIN tube fitting on one side (L22 series) to an M26 x 1.5 male metric thread on the other, with an ES face seal on the metric side for a leak-resistant hookup.

Answer by: Customer Support on May 5, 2025, 8:53 PM

what's the thread setup on both ends of this adapter? trying to figure out if it'll bridge a DIN fitting over to a metric port on my manifold

Question by: Marvin H on Jul 3, 2025, 9:32 AM

One end is an M30 x 2.0 male DIN tube fitting, which falls under the L22 series. The other end is an M26 x 1.5 male metric thread with an ES face seal. So yeah, it's built specifically to connect a DIN tube side to a metric ported component, and the face seal on the metric end keeps things tight without relying on thread compression alone.

Answer by: Customer Support on Jul 4, 2025, 1:49 PM
