Din X Mmetric Es Seal Complete

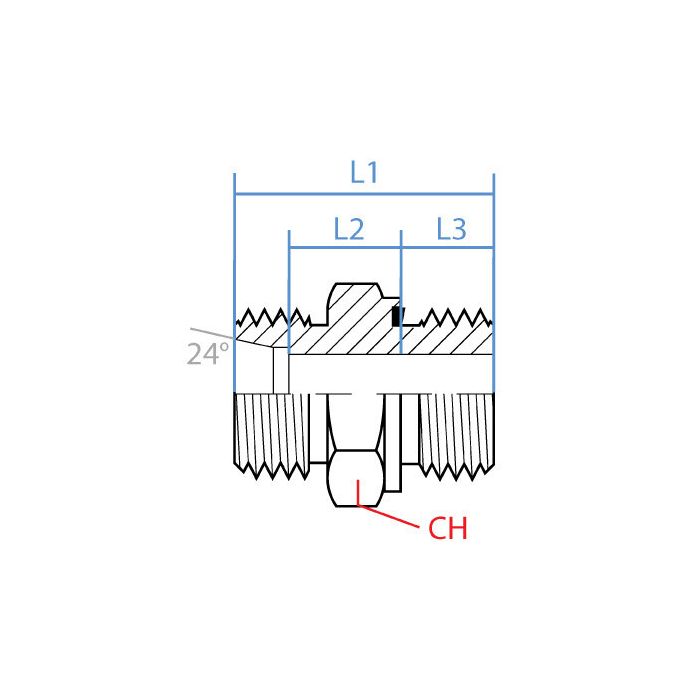

CH Width 24mm	L1 Length 31.5mm	L2 Length 12.5mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-12-18C	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a DIN tube end to a metric port, is this the kind of adapter that’ll do it

Question by: Bonnie G on Jan 7, 2026, 8:51 AM

Built for that crossover, it’s a straight steel male to male adapter with M18 x 1.5 threads on both ends. Side 1 is the DIN tube end with an L12 designation, and side 2 is the metric end sized at 18 mm, so it’s meant for inline spots where the thread is the same but the tube standard differs.

Answer by: Customer Support on Jan 8, 2026, 3:31 PM

What kinda steel is this fitting made from? Just wanna make sure it'll hold up.

Question by: Kirk P on Oct 20, 2025, 3:58 PM

The Adaptall fitting is constructed from steel, ensuring it can withstand typical hydraulic pressures and provide a reliable connection.

Answer by: Customer Support on Oct 21, 2025, 8:21 PM
