Din X Male Metric W/Es Seal 5068L-08-12

Specifications

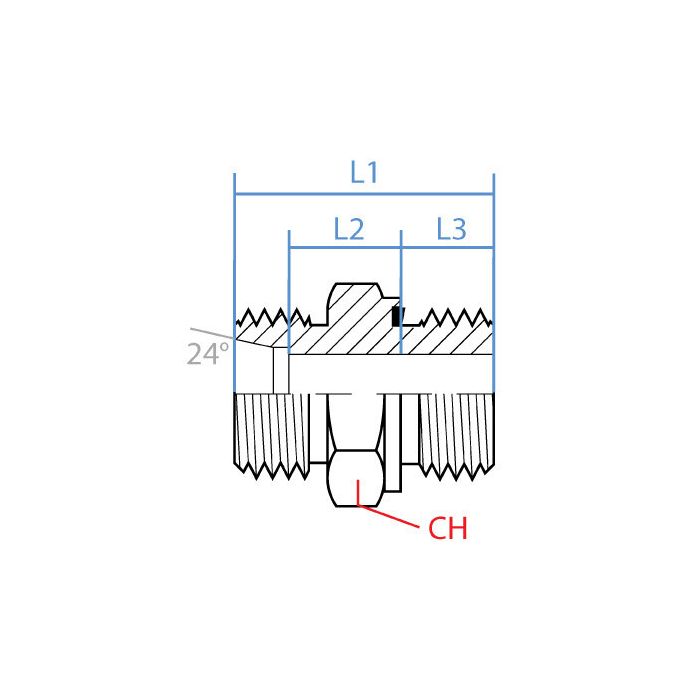

CH Width 17mm	L1 Length 29mm	L2 Length 10mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-08-12	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end with M14 x 1.5 DIN tube threads and need to step it down to M12 x 1.5, is this the right little adapter?

Question by: Danny H on Jan 3, 2026, 7:07 PM

For that thread change, it matches what you described. One end is M14 x 1.5 DIN tube, male, and the other end is M12 x 1.5 metric, also male, in a straight steel adapter.

Answer by: Customer Support on Jan 5, 2026, 6:38 AM

Got a line running M14 x 1.5 DIN tube on one end and need to tie into a M12 x 1.5 metric port, this the right piece for that?

Question by: Larry M on Feb 2, 2026, 8:45 PM

Yeah, that's exactly what this adapter is built for. One side is M14 x 1.5 DIN tube, the other is M12 x 1.5 metric, both male. Steel construction, straight profile, so it drops right into that kind of transition without needing anything extra in between.

Answer by: Customer Support on Feb 4, 2026, 6:43 AM

I just want to make sure this will fit, the tube side is a M14 right?

Question by: Todd B on Jul 16, 2025, 9:55 PM

the DIN tube side of this adapter is an M14 x 1.5. The metric side is an M12 x 1.5.

Answer by: Customer Support on Jul 18, 2025, 6:55 AM
