Din X Mmetric Es Seal Complete 5068L-08-10C

Specifications

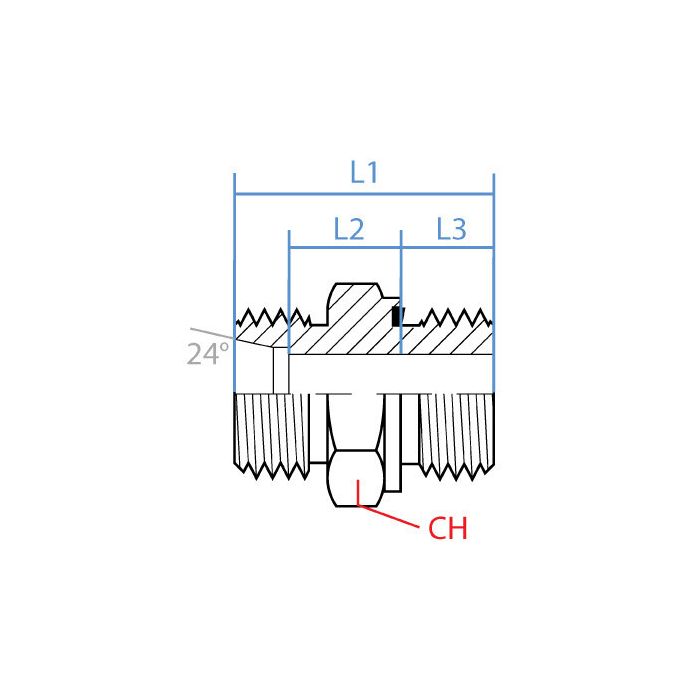

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-08-10C	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a DIN tube end to a metric port, is this the right adapter for that?

Question by: Roy R on Oct 18, 2025, 7:43 AM

For bridging those two thread styles in a straight, in-line run, it matches a male DIN tube connection on one side and a male metric fitting on the other. Side 1 is M14 x 1.5 in L08 sizing, and side 2 is M10 x 1.0 in 10 mm.

Answer by: Customer Support on Oct 19, 2025, 8:16 PM

Will this here adapter work to hook up a DIN fitting to somethin' metric?

Question by: Lyle B on Jun 8, 2025, 9:07 AM

That's precisely what it's for: connecting a DIN tube fitting to a metric port using a compact, one-piece design.

Answer by: Customer Support on Jun 10, 2025, 6:44 AM

Got a component with an M10 x 1.0 metric port and need to tie into a DIN tube line running M14 x 1.5, this adapter do that job straight across?

Question by: Dean K on Jan 12, 2026, 6:45 AM

Yeah, that's exactly what this one's built for. One end is a male DIN tube connection at M14 x 1.5 (L08 sizing), and the other end is a male metric at M10 x 1.0. Both male threads, straight configuration, so it bridges those two standards in a direct in-line connection without any angular offset. Steel construction, so it'll hold up to the pressure demands you'd expect in a hydraulic circuit.

Answer by: Customer Support on Jan 13, 2026, 9:55 AM
