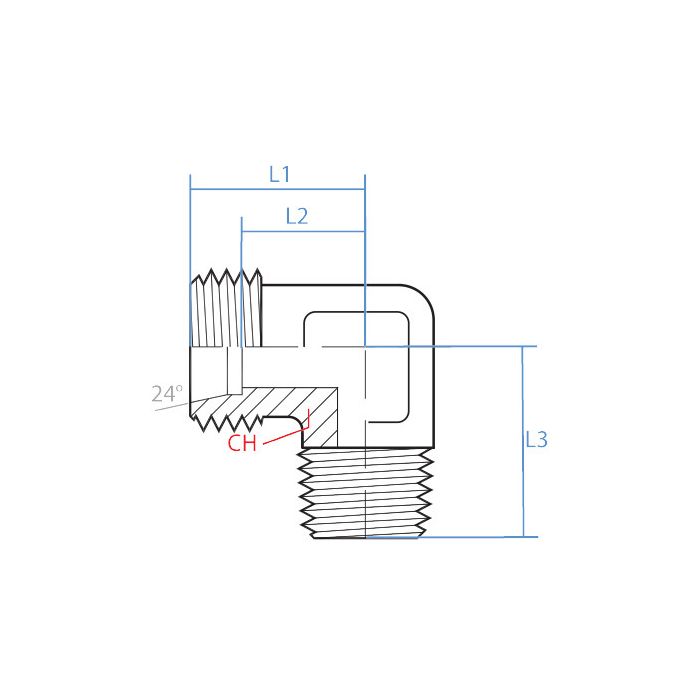

90* Din X Mbspt Elbow Complete

Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-10-08C	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

part says DIN tube on one side and BSPT on the other, is that M16 x 1.5 the tube fitting side or the pipe thread side?

Question by: Randy M on Apr 5, 2026, 7:59 AM

The M16 x 1.5 callout is the DIN tube side, sized at L10. The BSPT side is the R 1/2-14, which is a half-inch male British Standard Pipe Taper connection. So if you're running a DIN tube line into a BSPT port, this fitting bridges those two standards at a 90-degree angle. Both sides are male on this particular elbow.

Answer by: Customer Support on Apr 6, 2026, 7:06 PM
