90* Din X Male Bspt Elbow 5063L-10-06

Specifications

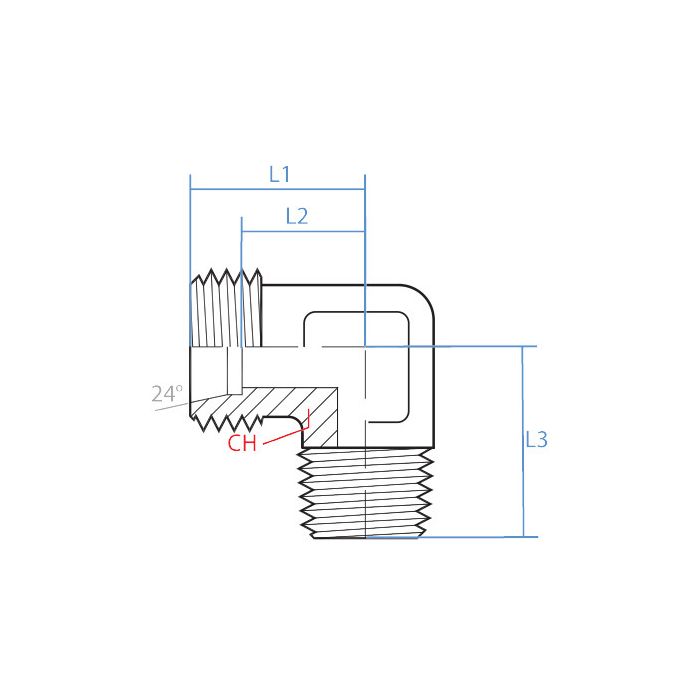

CH Width 17mm	L1 Length 22mm	L2 Length 15mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-10-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up for connecting some hydraulic lines on my tractor?

Question by: Keith E on Aug 10, 2025, 3:32 PM

Designed for robust hydraulic applications, this 90° elbow is made from steel to provide a reliable connection between a DIN tube and a BSPT fitting.

Answer by: Customer Support on Aug 12, 2025, 6:23 AM

part number 5063L-10-06, got an L10 DIN tube side and need to tie into a 3/8 BSPT male port. this the right fitting for that?

Question by: Denise J on Dec 11, 2025, 3:29 PM

That's what this one's built for. Side 1 is an L10 DIN tube connection with an M16 x 1.5 callout, and Side 2 is a 3/8" BSPT male with an R 3/8-19 callout. The 90-degree angle means you can route the tube perpendicular to that BSPT port without needing an extra adapter in the line.

Answer by: Customer Support on Dec 12, 2025, 3:40 PM

trying to swap out an elbow on a DIN tube line, is this one the M16 x 1.5 on one side and 3/8 BSPT male on the other?

Question by: Rusty J on Apr 9, 2025, 6:26 AM

Match-up wise, Side 1 is a DIN tube connection sized L10 with an M16 x 1.5 callout, and Side 2 is a 3/8 inch BSPT male with an R 3/8 - 19 callout.

Answer by: Customer Support on Apr 11, 2025, 6:58 AM
