90* Din X Male Bspt Elbow

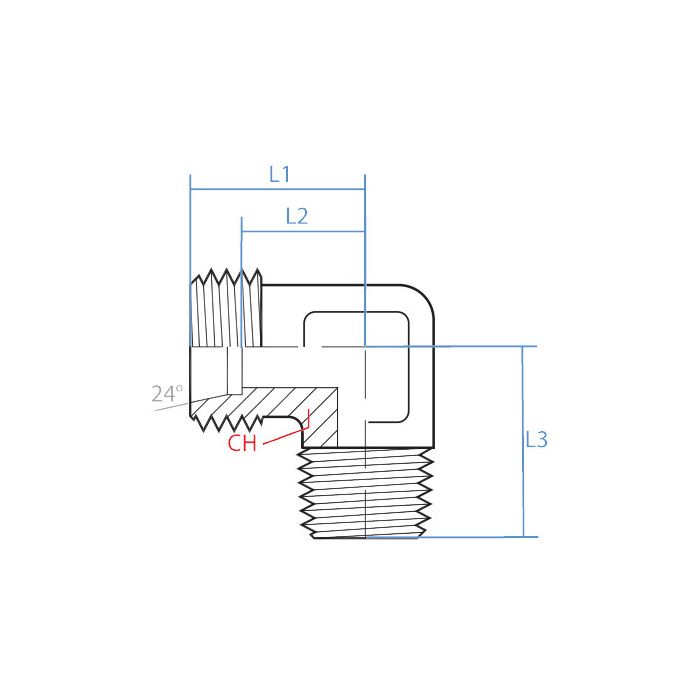

CH Width 14mm	L1 Length 22mm	L2 Length 15mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-10-04	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube end to a 1/4" BSPT port but i need to turn the line 90 degrees, is this the right elbow?

Question by: Wayne T on Mar 31, 2026, 8:19 AM

For a compact right angle change in direction, this elbow connects an M16 x 1.5 male DIN tube fitting (L10) on one side to a 1/4 inch male BSPT port on the other side (R 1/4-19).

Answer by: Customer Support on Apr 2, 2026, 8:36 AM
