90* Din X Mbspt Elbow Complete

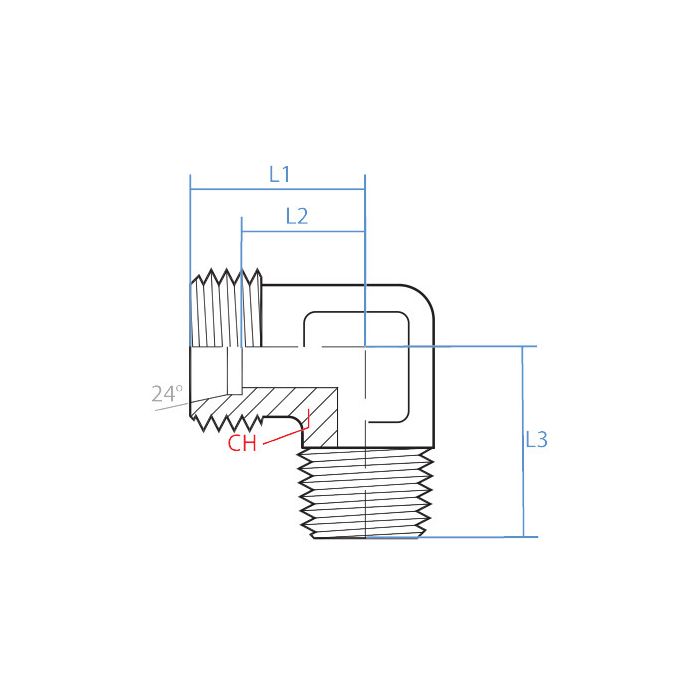

CH Width 12mm	L1 Length 21mm	L2 Length 14mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-08-04C	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out an elbow on a line, is this the one with M14 x 1.5 on the DIN tube side and a 1/4 BSPT male on the other end?

Question by: Chad L on Sep 7, 2025, 10:30 AM

The connections on this elbow are a male DIN tube end with an M14 x 1.5 callout (Side 1, size L08) and a male BSPT end with an R 1/4 - 19 callout (Side 2, 1/4 inch size).

Answer by: Customer Support on Sep 8, 2025, 8:01 PM
