90* Din X Male Bspt Elbow 5063L-08-04

Specifications

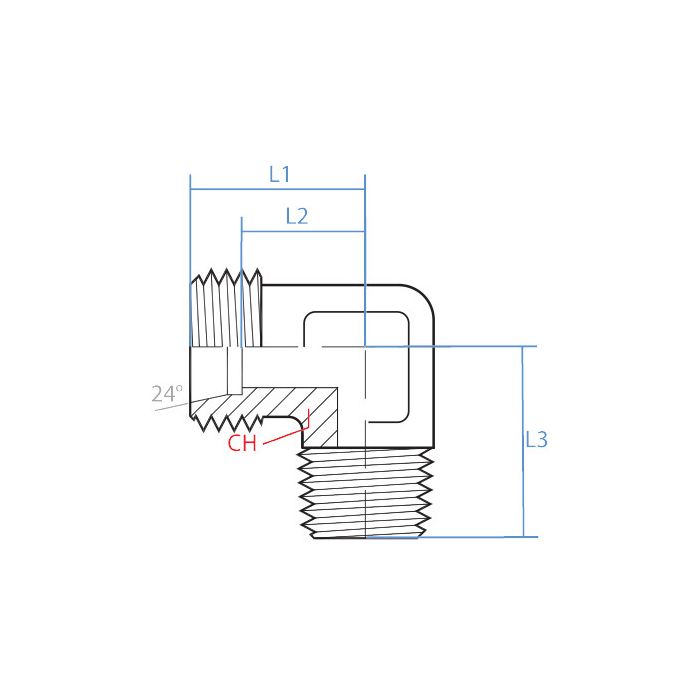

CH Width 12mm	L1 Length 21mm	L2 Length 14mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-08-04	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for tightening this elbow fitting?

Question by: Darryl H on Sep 4, 2025, 2:10 PM

You'll need a 12mm wrench to tighten this steel elbow fitting.

Answer by: Customer Support on Sep 6, 2025, 8:08 AM

trying to swap out an elbow on a tight run, is this one the M14 x 1.5 DIN tube on one end and a 1/4 BSPT male on the other?

Question by: Lynn A on Feb 10, 2026, 6:38 AM

For fit, Side 1 is a male M14 x 1.5 DIN tube connection (size L08) and Side 2 is a male R 1/4 - 19 BSPT connection (1/4 inch). It is a 90 degree elbow made from steel.

Answer by: Customer Support on Feb 11, 2026, 10:11 AM

What size is the BSPT side on this fitting, trying to figure out if it'll thread into a 1/4" port on my manifold.

Question by: Donna J on Apr 8, 2025, 8:10 PM

The BSPT side is a 1/4 inch R 1/4-19 male connection, so it will thread into a standard 1/4 inch BSPT female port. Just keep in mind that BSPT is a tapered thread, so it seals on the thread taper itself rather than needing a separate washer or face seal.

Answer by: Customer Support on Apr 10, 2025, 6:38 AM
