90* Din X Male Bspt Elbow

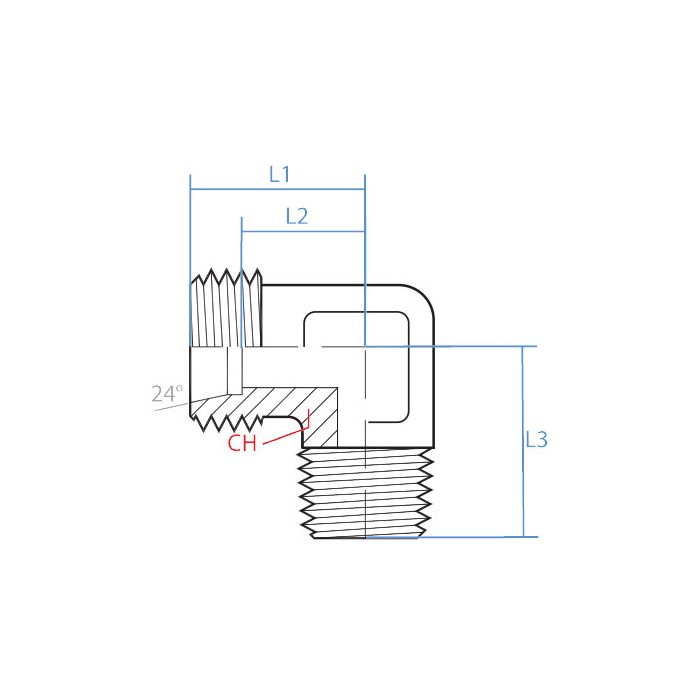

CH Width 12mm	L1 Length 21mm	L2 Length 14mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5063L-06-04	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line with an M12 x 1.5 DIN tube end and i need to turn it 90 degrees into a 1/4 BSPT port. is this the right elbow?

Question by: Cody S on Jan 21, 2026, 11:29 AM

For that combo, it matches up. One side is a male M12 x 1.5 DIN tube connection and the other side is a male R 1/4 - 19 BSPT thread, and the body is a 90 degree elbow.

Answer by: Customer Support on Jan 23, 2026, 7:47 AM
