90* Din X Mbspp Adj Complete

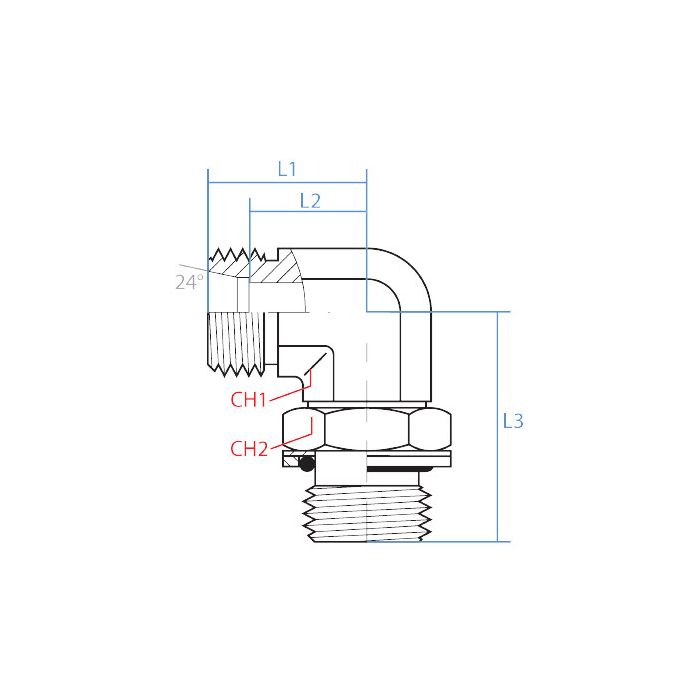

CH1 Width 33mm	CH2 Width 41mm	L1 Length 38mm	L2 Length 30.5mm	L3 Length 53mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-28-16C	Product Weight 1.01 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a DIN tube end into a 1 inch BSPP port but need a 90, is this the right adapter?

Question by: Cody M on Oct 15, 2025, 11:37 AM

For that mix of standards, it matches up. One side is a DIN tube end with an M36 x 2.0 thread in size L28, and the other side is a 1 inch male BSPP to the G 1 - 11 standard, built as a 90 degree elbow.

Answer by: Customer Support on Oct 17, 2025, 8:36 AM

trying to figure out if this'll work for hooking up a metric DIN tube line into a 1-inch BSP port on a manifold, that the right read on what this fitting does?

Question by: Tony H on Apr 21, 2025, 6:15 AM

Right on both counts. One end is a DIN tube connection with an M36 x 2.0 thread at the L28 nominal size, and the other end is a 1-inch male BSPP fitting to the G 1 – 11 standard. So if you've got a metric DIN tube coming off your circuit and need to drop into a BSP-threaded port at a right angle, this is the fitting that bridges that gap.

Answer by: Customer Support on Apr 23, 2025, 6:12 AM
