90* Din X Mbspp Adj Complete 5059L-18-08C

Specifications

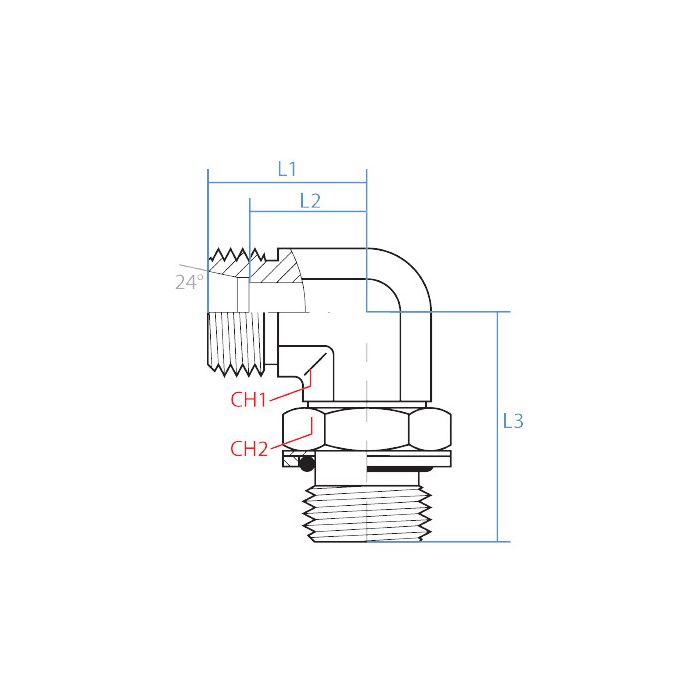

CH1 Width 27mm	CH2 Width 27mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 47mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-18-08C	Product Weight 0.51 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread setup on this thing? trying to figure out if it'll work between a DIN tube fitting and a BSPP port on my manifold

Question by: Chad R on Apr 21, 2025, 6:44 PM

One end carries an M26 x 1.5 male DIN tube connection, and the other end is a G 1/2 - 14 male BSPP. So if your tube side is an L18 DIN and your port is a 1/2 inch BSPP female, this adapter bridges that gap at a 90 degree angle.

Answer by: Customer Support on Apr 23, 2025, 6:53 AM

got a tight spot on a hydraulic manifold, is this the 90 degree steel elbow that goes from DIN tube M26x1.5 over to a 1/2 BSPP male?

Question by: Hubert E on Feb 6, 2026, 9:19 AM

For a compact 90° turn, it matches that setup. One end is a DIN tube connection with an M26 x 1.5 male thread (size L18), and the other end is a BSPP connection with a G 1/2 - 14 male thread (1/2 inch). The body is steel and the elbow shape helps route the line when you need a right-angle change.

Answer by: Customer Support on Feb 8, 2026, 6:35 AM

Will this elbow adapter hold up okay in a hydraulic system that runs pretty much non-stop?

Question by: Howard T on Jun 16, 2025, 7:18 PM

This Adaptall adapter is made from steel, so it should provide a durable and reliable connection for continuous operation in hydraulic systems.

Answer by: Customer Support on Jun 18, 2025, 2:21 PM
