90* Din X Male Bspp Adj Elbow

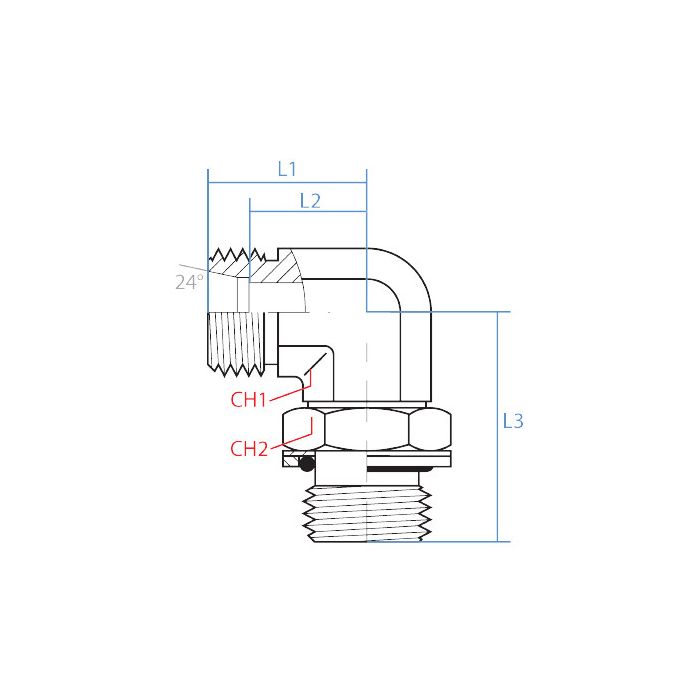

CH1 Width 22mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 43mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-15-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this elbow handle the pressures in a typical hydraulic system, or is it more for low-pressure applications?

Question by: Glen J on Nov 23, 2025, 1:17 PM

This elbow, made from steel and designed by Adaptall, is compatible with standard DIN and BSPP hydraulic assemblies, so it will work in normal hydraulic applications using those standards.

Answer by: Customer Support on Nov 24, 2025, 6:24 PM

Got a tight routing situation on a hydraulic line and need to swing from a DIN tube end over to a BSPP port, this elbow adjustable enough to set the angle where I need it during install?

Question by: Brenda M on Apr 28, 2025, 7:58 PM

Yeah, the adjustable feature on this fitting lets you rotate and position the elbow before locking it in place, so you can orient it to clear obstructions or match your line routing without having to add extra fittings. That's a real plus when you're working in a cramped space and can't afford a lot of extra hardware in the run.

Answer by: Customer Support on Apr 30, 2025, 1:57 PM
