90* Din X Mbspp Adj Complete 5059L-12-06C

Specifications

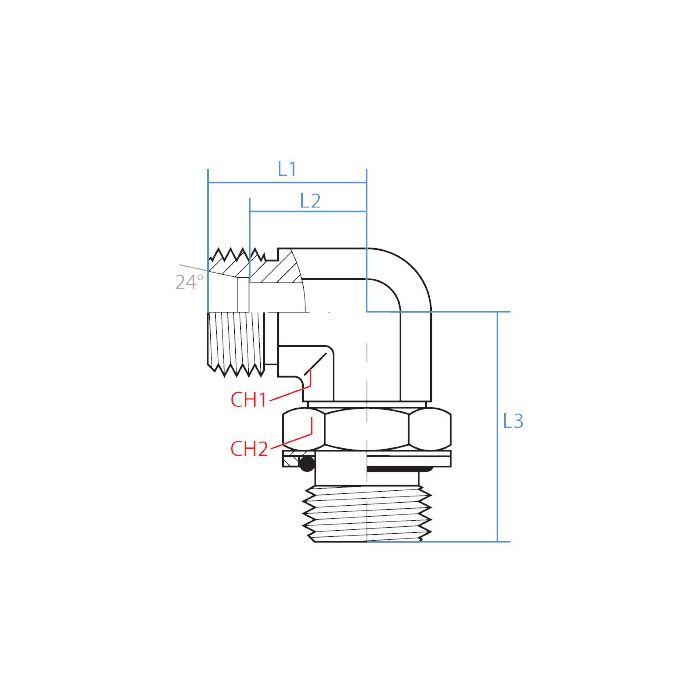

CH1 Width 19mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 17mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-12-06C	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

What size is this fitting on each end?

Question by: Dwayne E on Dec 2, 2025, 9:34 AM

The DIN Tube side is an M18 X 1.5, which they call a L12 size. The BSPP side is a G 3/8 - 19, or 3/8".

Answer by: Customer Support on Dec 3, 2025, 8:52 PM

fitting's got an M18 x 1.5 DIN tube side and I need to hook into a G 3/8 BSPP port, this the right piece for that?

Question by: Lyle W on Jun 12, 2025, 1:30 PM

That's what this one does. Side 1 is a male DIN tube connection with an M18 x 1.5 thread, sized at L12. Side 2 is a male BSPP connection called out at G 3/8 - 19. So if you've got a DIN tube line coming in and a BSPP port to thread into, this fitting bridges those two standards in a single 90-degree elbow.

Answer by: Customer Support on Jun 14, 2025, 7:02 AM

trying to replace an elbow on a din tube line, is this one the M18 x 1.5 (L12) to G 3/8-19 BSPP setup?

Question by: Floyd B on Jan 11, 2026, 7:03 PM

It matches a DIN tube Side 1 with an M18 x 1.5 callout in size L12, and Side 2 is a male BSPP with a G 3/8 - 19 callout in 3/8 inch size.

Answer by: Customer Support on Jan 13, 2026, 7:29 AM
