90* Din X Male Bspp Adj Elbow

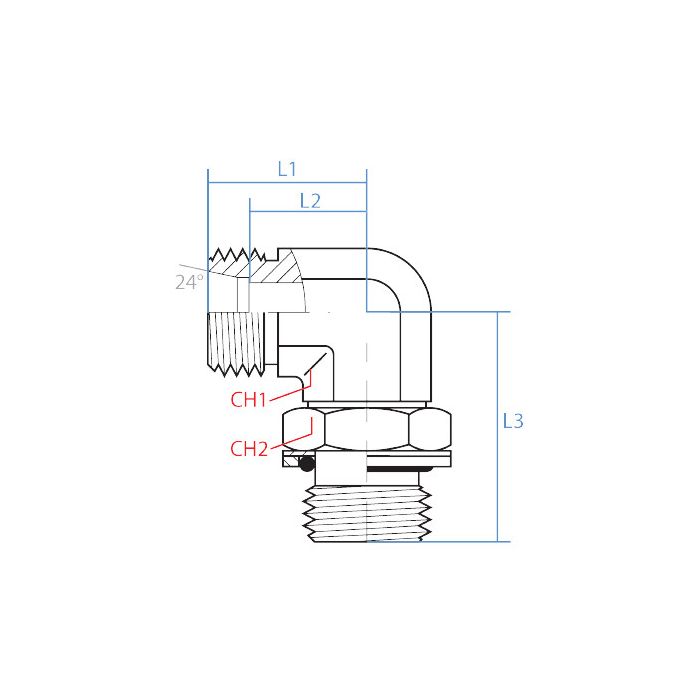

CH1 Width 19mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 17mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-12-06	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work if I need to connect a DIN tube to a BSPP fitting at a 90-degree angle?

Question by: Roy M on Jan 26, 2026, 5:47 PM

This 90-degree elbow is specifically designed to connect a DIN tube on one side to a BSPP connection on the other.

Answer by: Customer Support on Jan 28, 2026, 10:55 AM

got a tube nut that’s M18 x 1.5 on one side and i need to turn into a 3/8 BSPP male, is this the right elbow?

Question by: Rusty D on Feb 10, 2026, 10:57 AM

Matches that combo. Side 1 is a DIN tube connection with an M18 x 1.5 callout (size L12), and Side 2 is a male BSPP with a G 3/8 - 19 callout (3/8 inch).

Answer by: Customer Support on Feb 12, 2026, 9:47 AM
