90* Din X Mbspp Adj Complete 5059L-08-04C

Specifications

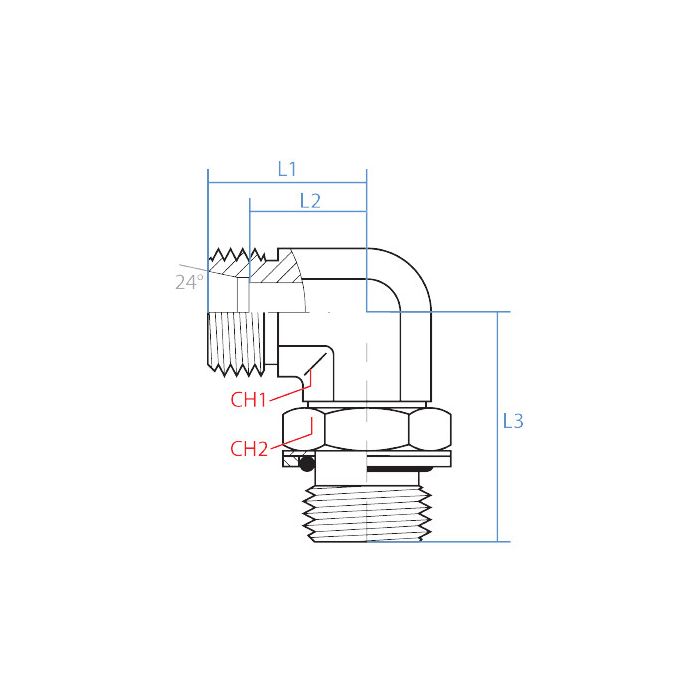

CH1 Width 14mm	CH2 Width 19mm	L1 Length 21mm	L2 Length 14mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-08-04C	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow fitting, how do i know this one’s the right thread on both ends?

Question by: Dustin G on Aug 26, 2025, 8:31 AM

Match it up to these callouts. Side 1 is a DIN tube connection with M14 x 1.5 male threads in size L08. Side 2 is a BSPP male thread, G 1/4 - 19, listed as 1/4 inch. If your old fitting uses those same thread callouts and end types, it is the same basic connection.

Answer by: Customer Support on Aug 28, 2025, 6:23 AM

Hey, will this elbow fitting work alright for hydraulic lines that need a 90-degree turn?

Question by: Dwight G on Jan 17, 2026, 9:14 AM

This 90° elbow adapter is specifically shaped to provide a reliable connection where you need to change the direction of your hydraulic lines. Its steel construction also ensures durability in demanding industrial environments.

Answer by: Customer Support on Jan 19, 2026, 6:35 AM

Got a hydraulic line running DIN tube on one end and a BSPP port on the other, this the kind of fitting that bridges those two?

Question by: Brett C on Sep 19, 2025, 6:26 PM

Yeah, that's exactly what this one does. One side is a DIN tube connection sized at L08 with M14 x 1.5 male threading, and the other side is a male BSPP port at 1/4 inch with G 1/4-19 threading. The 90 degree elbow shape lets you change flow direction right at the connection point, which comes in handy when you're working with lines that can't run straight into the port.

Answer by: Customer Support on Sep 21, 2025, 6:32 AM
