90* Bulkhead Tube Union

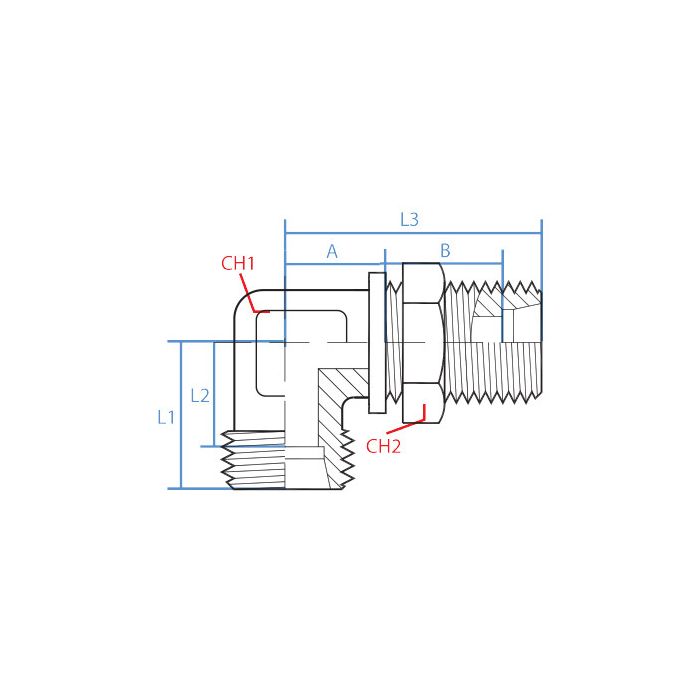

A Misc 24mm	B Misc 31.5mm	CH1 Width 27mm	CH2 Width 32mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 64mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042S-16	Product Weight 0.58 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this thing are M24 x 1.5 male threads, that right? just want to make sure before i order

Question by: Hubert E on Oct 8, 2025, 8:28 PM

Correct on both counts. Each side carries an M24 x 1.5 male thread in S16 sizing, and both are set up for DIN tube connections. So if your system runs DIN tube on either end of the bulkhead, the threading lines up the same way going in as it does coming out.

Answer by: Customer Support on Oct 10, 2025, 3:34 PM

got a bulkhead pass-through and need to turn 90 degrees right after it. is this the kind of fitting for that

Question by: Bonnie D on Sep 16, 2025, 6:32 AM

For a bulkhead setup where you want an immediate right-angle turn, this is a 90 degree bulkhead tube union, so it passes through a panel and gives you a 90 degree elbow connection on the tube side.

Answer by: Customer Support on Sep 17, 2025, 5:17 PM
