90* Bulkhead Tube Union

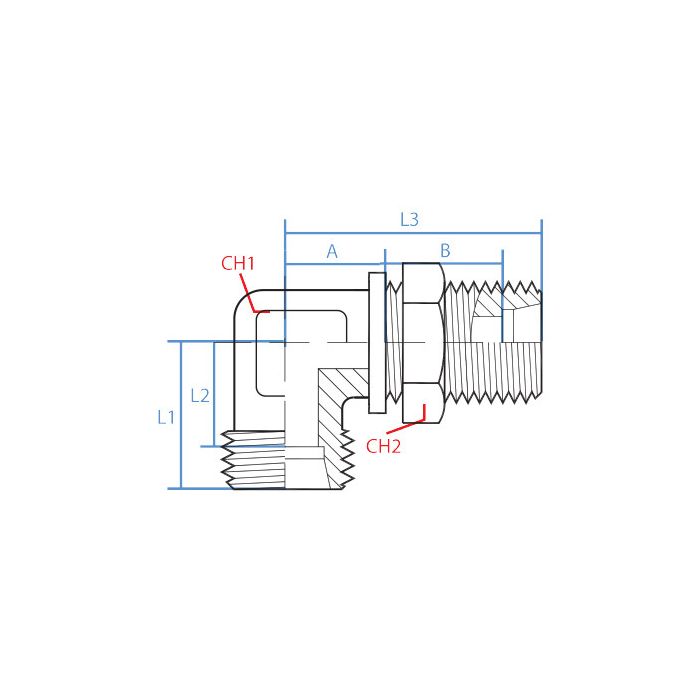

A Misc 21mm	B Misc 30.5mm	CH1 Width 17mm	CH2 Width 27mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 59mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042S-12	Product Weight 0.38 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for installing this?

Question by: Patty G on Feb 22, 2026, 7:42 AM

You'll need a 17mm wrench for the smaller side (Ch1) and a 27mm wrench for the larger side (Ch2).

Answer by: Customer Support on Feb 24, 2026, 6:38 AM

Both sides are male on this thing, how's that supposed to work when I'm routing tube through a panel or bulkhead? Seems like it'd just thread into nothing.

Question by: Roy R on Dec 6, 2025, 7:41 PM

Bulkhead fittings work a little different than standard inline unions. One male end threads into a nut or mating fitting on one side of the panel, and the other male end does the same on the opposite side. The bulkhead itself gets sandwiched and locked in place through the panel wall, so both male callouts, M20 x 1.5 on each side, are meant to connect to corresponding female fittings or nuts already in your system on either face. The 90-degree angle lets the tubing change direction right at the panel rather than requiring a separate elbow further down the line.
