90* Bulkhead Tube Union

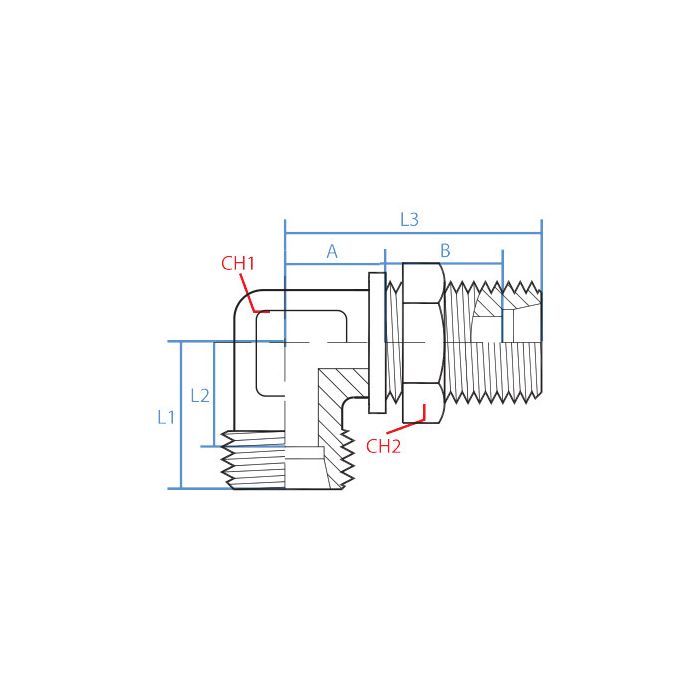

A Misc 20mm	B Misc 29.5mm	CH1 Width 17mm	CH2 Width 24mm	L1 Length 25mm	L2 Length 17.5mm	L3 Length 57mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042S-10	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

What size tubing does this union work with?

Question by: Diane P on Nov 3, 2025, 2:05 PM

It's designed for use with DIN tube systems, specifically size S10, which corresponds to M18 x 1.5 threads on both sides.

Answer by: Customer Support on Nov 4, 2025, 7:18 PM

trying to swap out a bent fitting, will this work if both sides of my bulkhead are M18 x 1.5 DIN tube?

Question by: Janice C on Oct 12, 2025, 6:32 AM

With M18 x 1.5 male threads on both ends and DIN tube on both sides, it matches a DIN tube bulkhead connection where you need the same thread and type on each side, just in a 90 degree elbow.

Answer by: Customer Support on Oct 14, 2025, 6:32 AM
