90* Bulkhead Tube Union 5042L-12

Specifications

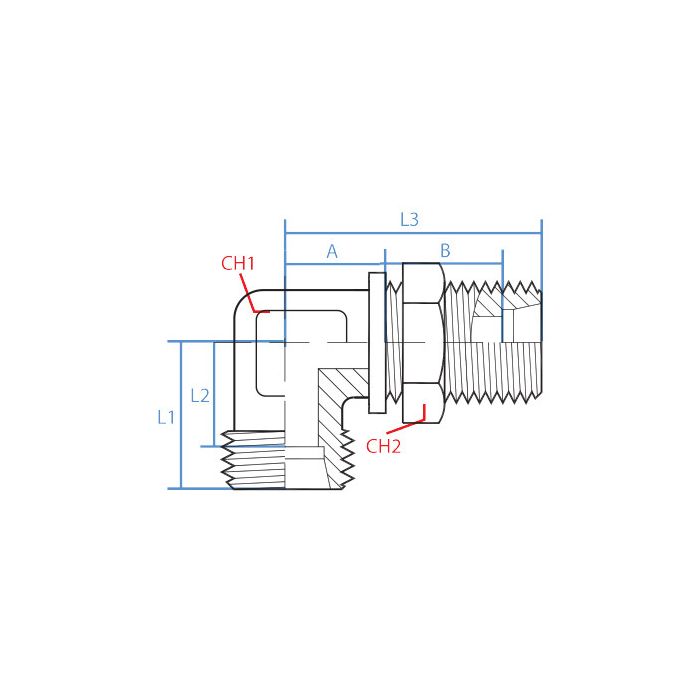

A Misc 20mm	B Misc 29mm	CH1 Width 17mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 17mm	L3 Length 56mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042L-12	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

got a DIN L12 tube setup with M18 x 1.5, is this the right bulkhead elbow union or am i off a size?

Question by: Tommy W on May 4, 2025, 2:17 PM

For a DIN tube fitting size L12, this union matches with M18 x 1.5 male threads on both ends. It is a 90 degree bulkhead tube union, so it is meant to make that right angle connection through a bulkhead while staying in the L12, M18 x 1.5 DIN tube format.

Answer by: Customer Support on May 6, 2025, 6:51 AM

both ends are M18 x 1.5 male threading on this thing, so what size DIN tube fittings am I working with here?

Question by: Ricky H on Apr 22, 2025, 11:06 AM

Both sides of this fitting are sized for L12 DIN tube fittings. The M18 x 1.5 male threads on each end are what connect it into a DIN tube system, and L12 is the tube size you need to match up on both sides. No mixing of sizes here, it's the same spec on each end.

Answer by: Customer Support on Apr 23, 2025, 6:51 PM

Is this here fitting made outta steel? Need somethin' that can handle some pressure.

Question by: Rusty M on Apr 24, 2025, 2:25 PM

Yes, this 90° Bulkhead Tube Union is constructed from steel, so it should hold up well in high-pressure conditions.

Answer by: Customer Support on Apr 25, 2025, 6:12 PM
