Metric Bulkhead Nut

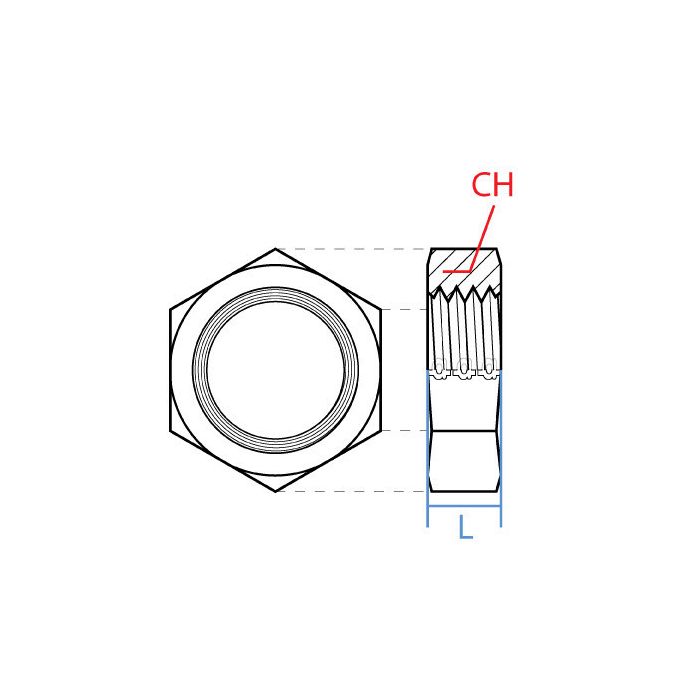

CH Width 27mm	L Length 8.8mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size 22mm	Side 1 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5041-22	Product Weight 0.04 lbs

Product Questions & Answers 1

Product Questions & Answers

What size thread does this bulkhead nut run on, and will it work with M22 x 1.5 metric fittings?

Question by: Billy H on Jun 13, 2025, 12:54 PM

Female M22 x 1.5 metric thread on the one side, so yes, it'll mate up with compatible M22 x 1.5 metric fittings. The across-flats width is 27mm and the overall length comes in at 8.8mm, so it's a pretty compact piece. Being part of Adaptall's modular system, it's meant to be paired with compatible adapters and bodies to build out the connection you need for your specific setup.

Answer by: Customer Support on Jun 15, 2025, 11:52 AM
