Din Bulkhead Union

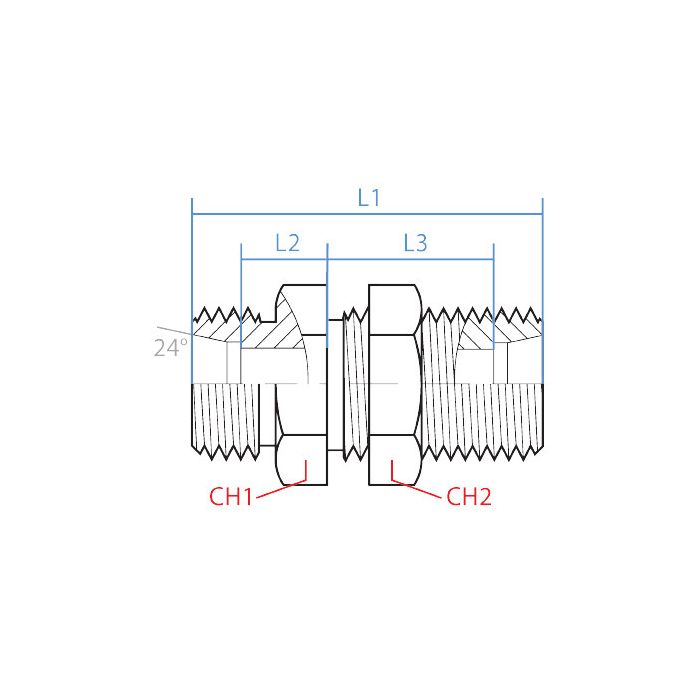

CH1 Width 46mm	CH2 Width 46mm	L1 Length 79mm	L2 Length 20mm	L3 Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040S-25	Product Weight 1.08 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for these bulkhead unions? Looks like maybe 46mm?

Question by: Harold P on Feb 17, 2026, 8:05 PM

you got it. The flats on these fittings are 46mm across, so a standard 46mm wrench will do the trick.

Answer by: Customer Support on Feb 19, 2026, 6:01 AM

got a bulkhead pass-through deal with DIN tube ends. is this one straight and threaded M36 x 2.0 on both sides?

Question by: Randy E on Jan 26, 2026, 4:53 PM

Built as a straight bulkhead union, it has M36 x 2.0 male DIN Tube connections on both sides, with side 1 and side 2 both called out as S25.

Answer by: Customer Support on Jan 28, 2026, 4:14 PM

what size tubing does this bulkhead union work with? both sides are the same connection or different?

Question by: Hubert B on Aug 14, 2025, 8:19 AM

Both sides run M36 x 2.0 male DIN Tube connections, so you're working with matching S25 fittings on each end. Same size all the way through, which keeps things straightforward when you're routing tube on both sides of a panel or bulkhead wall.

Answer by: Customer Support on Aug 15, 2025, 12:23 PM
