Din Bulkhead Union

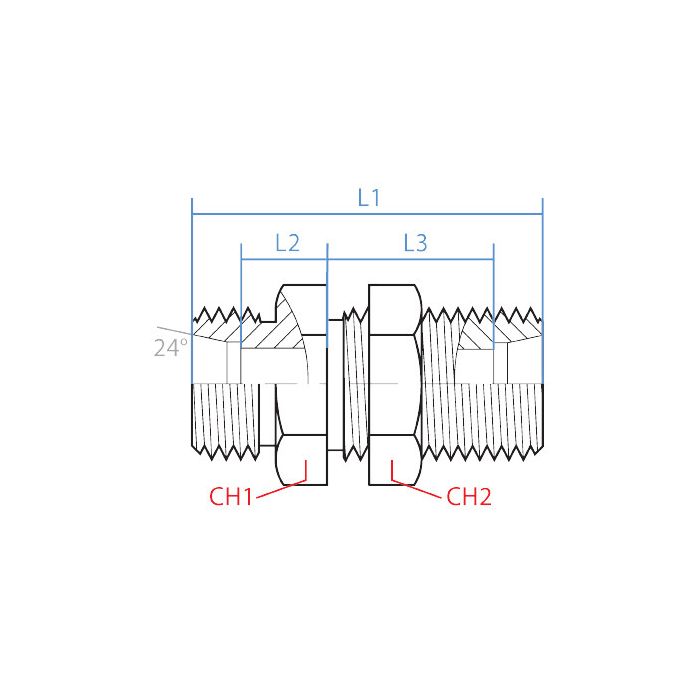

CH1 Width 27mm	CH2 Width 30mm	L1 Length 60mm	L2 Length 14.5mm	L3 Length 30.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040S-12	Product Weight 0.33 lbs

Product Questions & Answers 1

Product Questions & Answers

both ends are M20 x 1.5 on this thing, right? just want to make sure before i go cutting into the panel

Question by: Ronnie L on Dec 16, 2025, 2:20 PM

Correct on both counts. Each side carries an M20 x 1.5 male DIN tube thread, so you've got a matched straight-through connection. The fitting runs 60mm overall in length, with 14.5mm on one side and 30.5mm on the other, which gives you enough thread engagement to work through most panel thicknesses without a lot of fuss.

Answer by: Customer Support on Dec 17, 2025, 2:25 PM
