Din Bulkhead Union

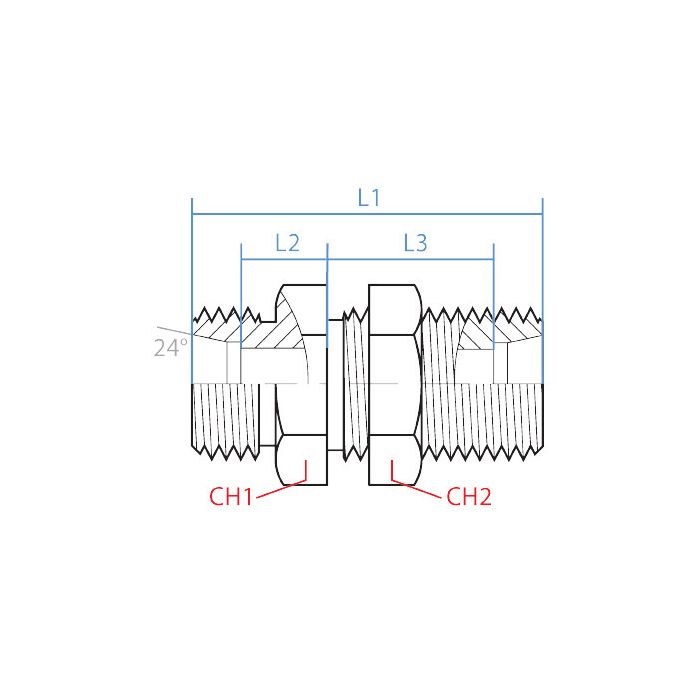

CH1 Width 41mm	CH2 Width 46mm	L1 Length 69mm	L2 Length 18.5mm	L3 Length 35.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-28	Product Weight 0.73 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap one out, is this a straight bulkhead union with M36 x 2.0 threads on both ends?

Question by: Dwight Y on Jul 14, 2025, 6:19 PM

Built as a straight bulkhead union, it has M36 x 2.0 callouts on both sides, and both ends are DIN Tube type in size L28 with male threads.

Answer by: Customer Support on Jul 16, 2025, 6:04 AM

What's the deal with the 'L' numbers on this bulkhead union? I'm looking at L1, L2, and L3... what do they actually *mean*?

Question by: Sheila B on Jun 3, 2025, 12:38 PM

These L measurements (L1, L2, L3) designate specific lengths of the union. L1 is the overall length at 69mm. L2 is 18.5mm and L3 is 35.5mm, likely referring to thread depths or section lengths.

Answer by: Customer Support on Jun 4, 2025, 6:35 PM
