Din Bulkhead Union Complete

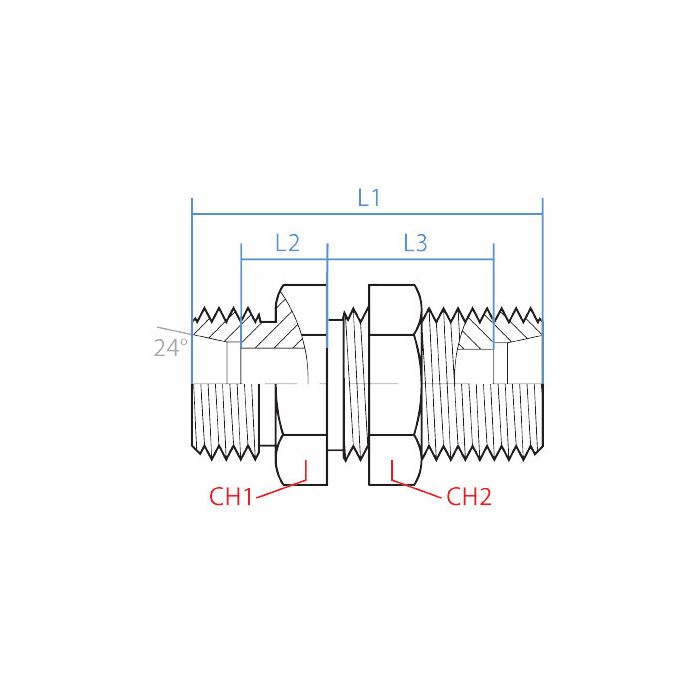

CH1 Width 24mm	CH2 Width 24mm	L1 Length 53mm	L2 Length 10mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-12C	Product Weight 0.18 lbs

Product Questions & Answers

got a bulkhead pass-through i need to replace. is this the straight one with m18 x 1.5 on both sides?

Question by: Darryl T on Sep 15, 2025, 12:48 PM

Built as a straight bulkhead union, it has M18 x 1.5 male threads on both ends, with both sides set up for DIN tube size L12.

Answer by: Customer Support on Sep 17, 2025, 6:31 AM

So this is a DIN tube fitting, right? Both sides? Just want to make sure before I order a bunch.

Question by: Roger W on Nov 16, 2025, 5:05 PM

That's correct. This Adaptall fitting features DIN tube connections on both ends, size L12, according to the specs.

Answer by: Customer Support on Nov 17, 2025, 8:34 PM
