Din Bulkhead Union

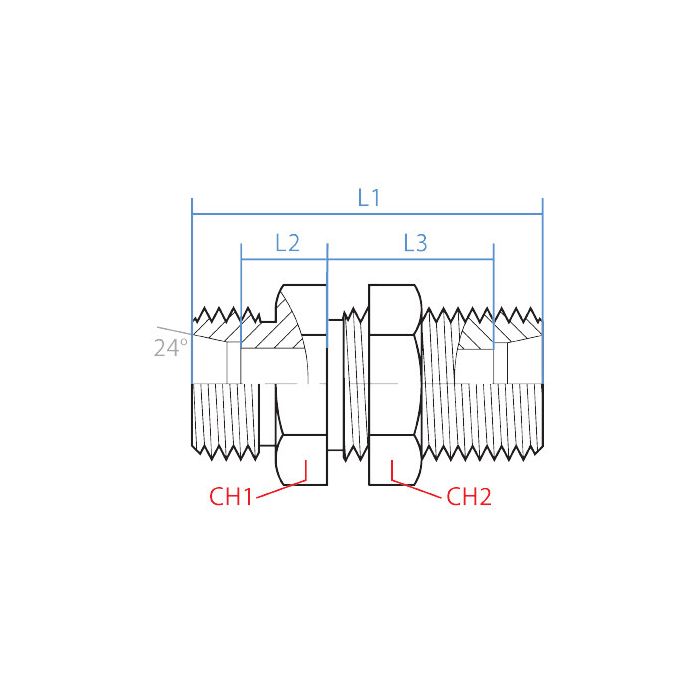

CH1 Width 24mm	CH2 Width 24mm	L1 Length 53mm	L2 Length 10mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-12	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's 53mm long total, will that be enough to clear both sides of a standard panel when it's mounted through?

Question by: Freddie O on Apr 11, 2025, 12:21 PM

At 53mm overall with a 29mm center-to-panel dimension and 10mm of thread engagement on each side, there's enough length for most standard panel installations. The 29mm figure represents the distance from the panel face to the center of the fitting, so you'd account for panel thickness when figuring your clearance. As long as your panel isn't unusually thick, the geometry works out fine for a typical bulkhead pass-through setup.

Answer by: Customer Support on Apr 12, 2025, 3:02 PM

need a straight bulkhead fitting to pass a line through a panel. is this one actually made for that kind of setup

Question by: Carl C on Feb 28, 2026, 10:13 AM

For running a hydraulic line through a partition, this is a straight DIN bulkhead union meant for panel or bulkhead mounting. It joins two same size DIN tube ends on either side so you get a clean through-panel connection in one compact fitting.

Answer by: Customer Support on Mar 2, 2026, 7:51 AM
