Din Bulkhead Union Complete 5040L-10C

Specifications

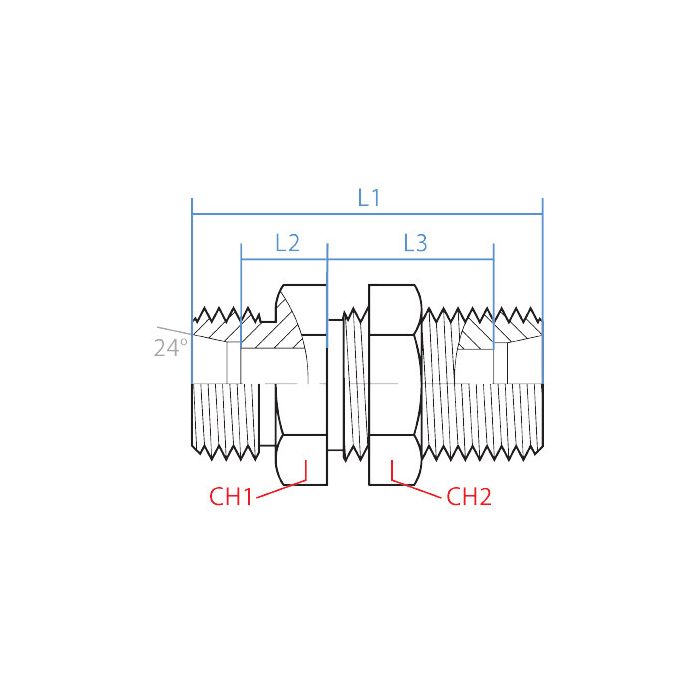

CH1 Width 22mm	CH2 Width 22mm	L1 Length 52mm	L2 Length 10mm	L3 Length 28mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-10C	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

got a panel pass-through deal, is this the straight bulkhead union with m16 x 1.5 on both sides?

Question by: Dean T on May 18, 2025, 8:49 AM

For a straight bulkhead union with matching ends, this one fits that bill. Both sides are male DIN tube threads called out as M16 x 1.5, so it is set up to pass through a bulkhead and connect the same thread on each side.

Answer by: Customer Support on May 20, 2025, 6:09 AM

So, this here union is made of steel, right? Wondering if it'll hold up against some rust, being used outdoors mostly.

Question by: Wade M on Jul 8, 2025, 10:03 AM

Steel construction does offer good resistance to wear. It should hold up well in demanding environments, giving you a dependable hydraulic connection.

Answer by: Customer Support on Jul 10, 2025, 6:05 AM

Both sides are M16 x 1.5 DIN tube threads, that right? Just want to make sure before I go orderin' the wrong thing for a panel mount setup I got.

Question by: Tommy P on Feb 6, 2026, 3:50 PM

Correct on both counts. Each side carries an M16 x 1.5 male DIN tube thread, so the fitting is fully symmetrical. That makes it straightforward to drop into a bulkhead or panel mount application without having to worry about which end faces which direction.

Answer by: Customer Support on Feb 8, 2026, 3:27 PM
