Din Bulkhead Union Complete 5040L-08C

Specifications

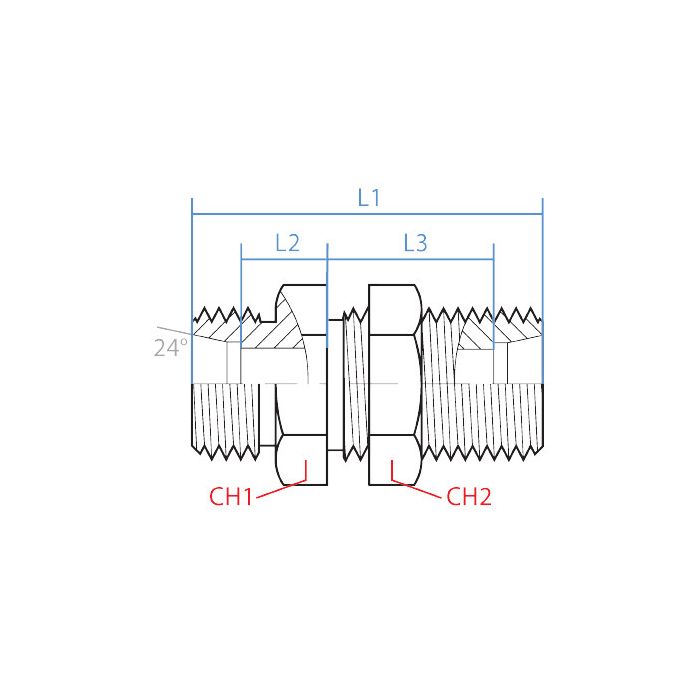

CH1 Width 19mm	CH2 Width 19mm	L1 Length 49mm	L2 Length 8mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-08C	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

what tubes does this union hook up with on both ends?

Question by: Shane G on Feb 4, 2026, 7:33 AM

Both sides are set up for L08 male DIN tubes, with an M14 x 1.5 thread callout on each end. So if you're running L08 DIN tube lines on both sides of a bulkhead, this fitting covers that connection straight through without needing any adapters in between.

Answer by: Customer Support on Feb 6, 2026, 6:02 AM

Can this here bulkhead union handle the high pressure in my hydraulic system or what?

Question by: Kent C on Apr 25, 2025, 10:38 AM

Made from steel, this union is designed for robust performance in demanding hydraulic applications, ensuring a steadfast connection.

Answer by: Customer Support on Apr 26, 2025, 8:34 PM

got a bulkhead pass-through on my panel, is this the straight union that ties two L08 male DIN tube ends together?

Question by: Chad J on Sep 28, 2025, 11:24 AM

For a straight bulkhead union setup, this one matches M14 x 1.5 on both sides and it is sized for L08 male DIN tube connections, so it is meant to join those two ends straight through.

Answer by: Customer Support on Sep 30, 2025, 6:46 AM
