Din Bulkhead Union

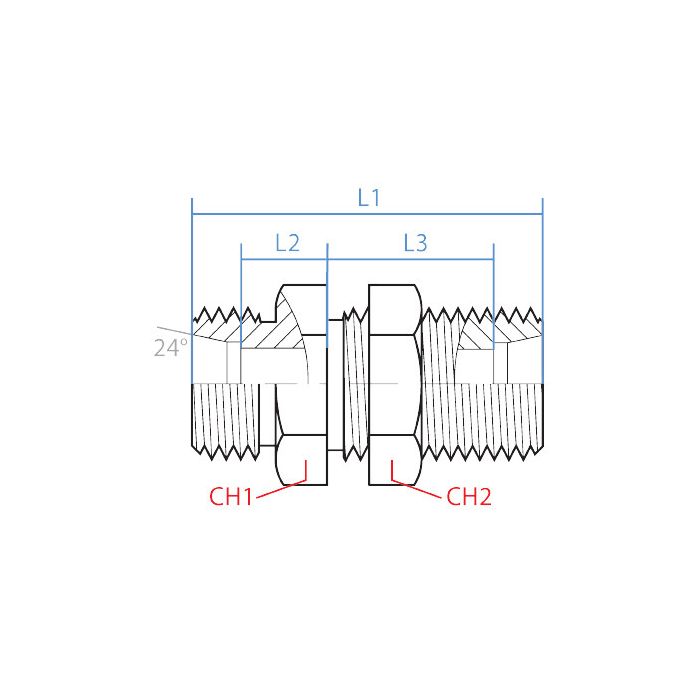

CH1 Width 17mm	CH2 Width 17mm	L1 Length 48mm	L2 Length 7mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-06	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

Both ends got the same thread on 'em, M12 x 1.5, so this thing's symmetric, right? Just want to make sure I ain't gonna mix up which side goes where when I'm runnin it through the panel.

Question by: Troy W on May 18, 2025, 7:37 PM

both sides are identical. M12 x 1.5 male threads, L06 size, DIN tube type on each end. There's no designated inlet or outlet side, so orientation through the panel doesn't matter. You can run it either direction without any fitment issues.

Answer by: Customer Support on May 20, 2025, 2:34 PM

Wondering if this'll fit on my hydraulic setup. It's got DIN fittings, but wanna be sure on the size.

Question by: Vince S on May 19, 2025, 4:08 PM

This Adaptall bulkhead union uses M12 x 1.5 male threads on both sides, sized at L06, making it suitable for connecting DIN tube fittings through a panel.

Answer by: Customer Support on May 20, 2025, 9:13 PM
