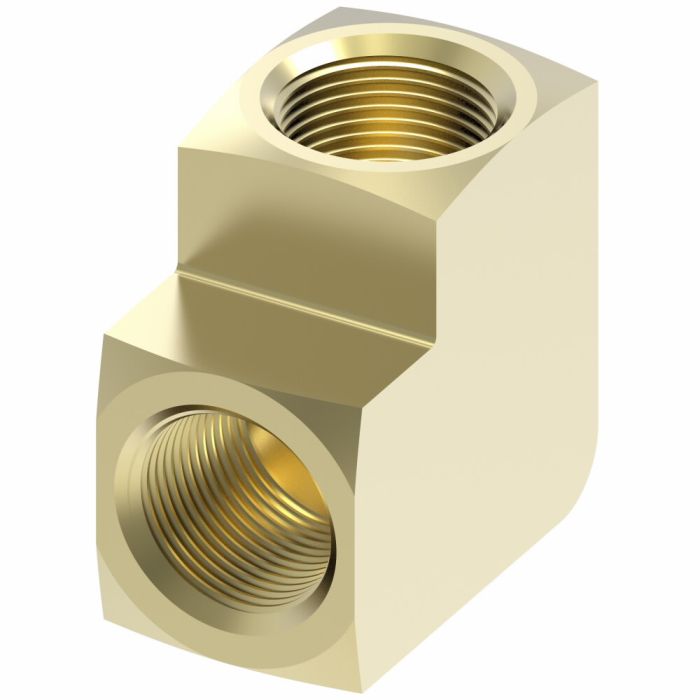

Brass Adapter, 1/4 in Inverted Flare Union, 90 Deg Elbow 502X4-EATON

Specifications

Drop Dimension 0.52	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.44	End Size 2 0.44	End Type 1 Inverted	End Type 2 Inverted	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Inverted Female/Inverted Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.53	Sub Brand None	Supplier Part Number 502X4	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay outside? Don't want it corroding on me.

Question by: Kurt E on Oct 20, 2025, 7:45 PM

Given that this adapter features Dura-Kote plating, it offers superior corrosion resistance, which should help it withstand outdoor conditions better than a standard brass fitting.

Answer by: Customer Support on Oct 22, 2025, 7:19 AM

both ends on this are the inverted flare type, right? trying to connect two 1/4 inch inverted flare lines at a 90 and want to make sure I ain't gotta use any adapters in between

Question by: Rick M on Dec 15, 2025, 1:13 PM

Correct on both counts. Each end is a 1/4 inch inverted flare female connection, so you're joining two inverted flare lines directly with no intermediate fittings needed. The 90 degree angle is built into the union itself, which keeps things clean when you're working in a tight spot or need to change direction between two fixed lines.

Answer by: Customer Support on Dec 17, 2025, 8:09 AM
