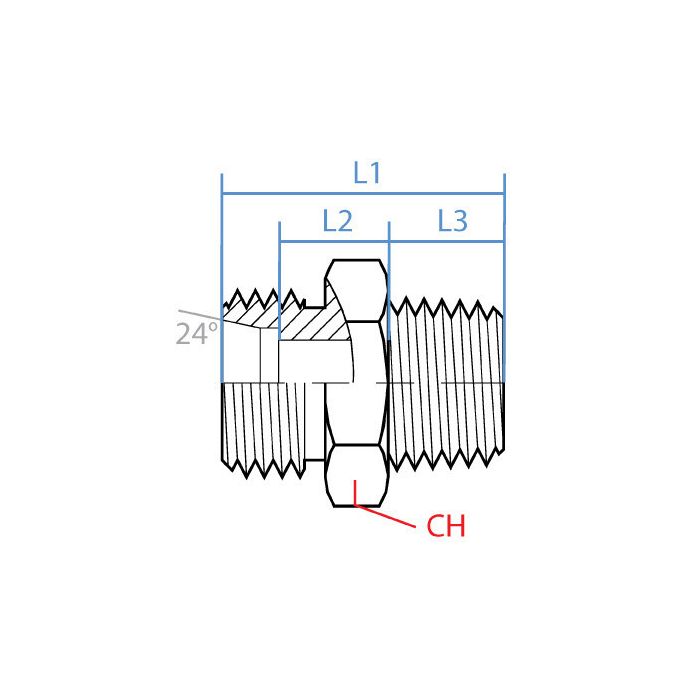

Din X Male Bspt Complete

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011S-16-08C	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

got a DIN tube end that’s M24 x 1.5 size S16. is this the right adapter to land it into a 1/2 BSPT port?

Question by: Frank S on Sep 5, 2025, 6:46 PM

For a straight DIN tube to port transition, it matches those exact ends. One side is a DIN tube end with M24 x 1.5 threads in size S16, and the other side is a male BSPT thread R 1/2-14, which is the common 1/2 inch BSPT port size.

Answer by: Customer Support on Sep 7, 2025, 8:18 AM
