Din X Male Bspt Complete 5011LL-06-02C

Specifications

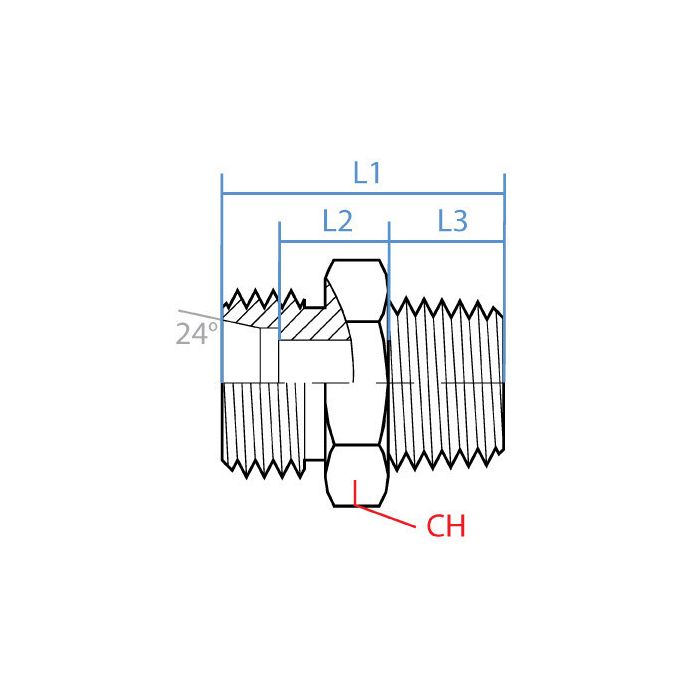

CH Width 11mm	L1 Length 20mm	L2 Length 6mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M10 X 1.0	Side 1 Gender M	Side 1 Size LL06	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011LL-06-02C	Product Weight 0.04 lbs

Product Questions & Answers 3

Product Questions & Answers

got a DIN tube fitting on an old hydraulic line that needs to tie into a 1/8 BSPT port, this the right piece for that?

Question by: Rhonda T on Dec 17, 2025, 10:32 AM

That's what this adapter is built for. One end is an M10 x 1.0 DIN tube male connection, and the other is a 1/8 inch BSPT male thread, so it bridges those two standards in a single straight fitting. Both sides are male, so make sure the ports or fittings you're connecting to are female on each end. Steel construction, compact dimensions, 20mm on the main length, so it should tuck in without much trouble even where space is tight.

Answer by: Customer Support on Dec 19, 2025, 8:06 AM

trying to hook an m10 x 1.0 DIN tube up to a 1/8 BSPT port, is this the right adapter?

Question by: Tony C on Jul 18, 2025, 7:29 AM

For that mix of connections, it matches up as a straight steel adapter with an M10 x 1.0 DIN tube male end on Side 1 and an R 1/8 - 28 BSPT male thread on Side 2.

Answer by: Customer Support on Jul 20, 2025, 8:36 AM

Will this here adapter hold up okay in a hydraulic system that sees some pretty high pressures?

Question by: Wayne R on Dec 6, 2025, 2:18 PM

Because this adapter is constructed from steel, it is durable enough to handle demanding industrial environments. It's built to provide a reliable connection in hydraulic systems.

Answer by: Customer Support on Dec 7, 2025, 6:44 PM
