Din X Male Bspt Complete

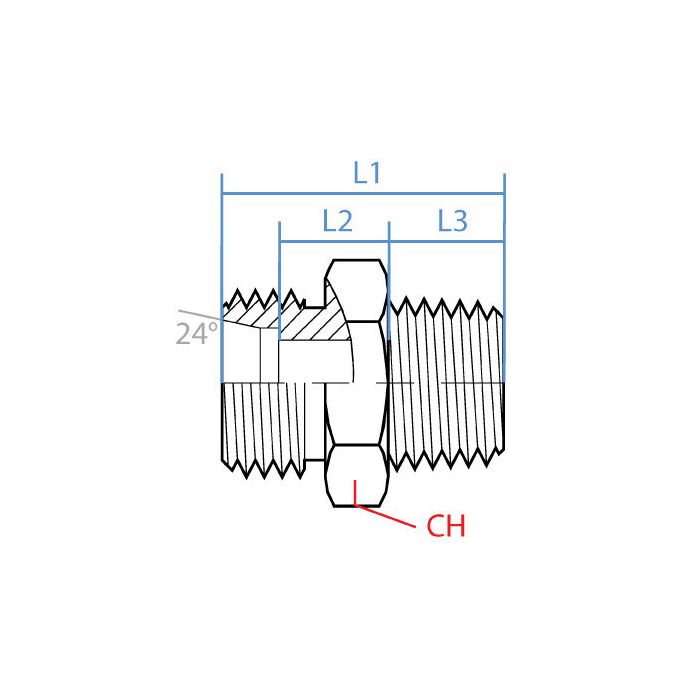

CH Width 11mm	L1 Length 20mm	L2 Length 8mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M8 X 1.0	Side 1 Gender M	Side 1 Size LL04	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011LL-04-02C	Product Weight 0.02 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this fitting can handle the kinda pressures you find in heavy equipment hydraulics?

Question by: Lyle C on Mar 14, 2026, 2:26 PM

Designed for demanding industrial environments, this fitting uses robust steel construction to ensure reliability and durability.

Answer by: Customer Support on Mar 16, 2026, 6:37 AM

Got a DIN tube line running M8 x 1.0 that I need to tie into a BSPT port, this fitting do that straight across?

Question by: Billy R on Feb 7, 2026, 6:11 AM

Yeah, that's exactly what this one's built for. Side 1 is an M8 x 1.0 DIN tube connection, male, and Side 2 comes out as a 1/8" R 1/8-28 BSPT male. It's a straight fitting, so there's no angle to account for. Steel construction, 11mm wrench width, and it keeps a compact footprint with a 20mm overall length. Fits tight spaces without much fuss.

Answer by: Customer Support on Feb 9, 2026, 6:49 AM
