Din X Male Bspt Complete 5011L-12-06C

Specifications

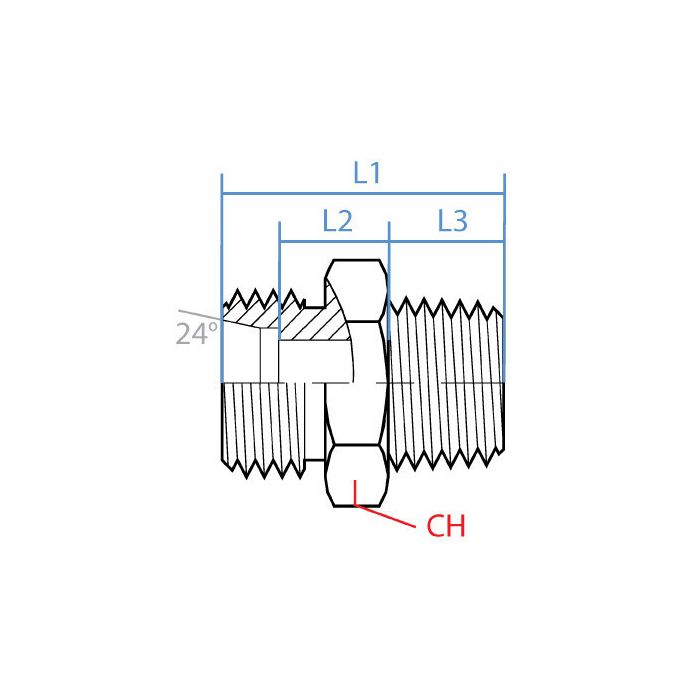

CH Width 19mm	L1 Length 29mm	L2 Length 10mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-12-06C	Product Weight 0.08 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a hose over, is this the adapter that goes from M18 x 1.5 DIN tube (L12) to a 3/8 BSPT male?

Question by: Vince S on May 29, 2025, 4:23 PM

You’re looking at a straight steel adapter with Side 1 as an M18 x 1.5 DIN tube connection in size L12, and Side 2 as a 3/8 inch BSPT male thread with an R 3/8 - 19 callout.

Answer by: Customer Support on May 31, 2025, 8:28 AM

Just wanna make sure, will this fitting work to connect a M18 X 1.5 DIN tube to a 3/8" Bspt male connection?

Question by: Freddie R on May 11, 2025, 6:34 PM

That's what it's for. This straight steel fitting adapts between those two connection types.

Answer by: Customer Support on May 13, 2025, 6:44 AM

Got a line running M18 x 1.5 DIN tube on one end and need to tie into a 3/8 BSPT male port, this the right piece for that?

Question by: Hank B on Mar 28, 2026, 8:19 PM

That's what this fitting handles. One end is an M18 x 1.5 DIN tube connection at size L12, and the other is a 3/8 inch BSPT male thread with an R 3/8-19 callout. Straight steel body, so no angle changes in the line. If both those connection types match what you're working with, this will do the job.

Answer by: Customer Support on Mar 30, 2026, 7:20 AM
