Din X Male Bspt Complete

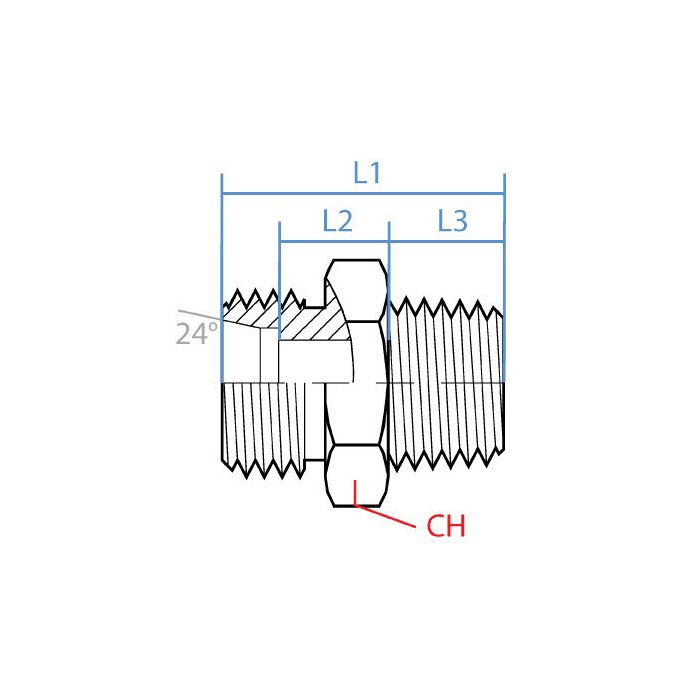

CH Width 17mm	L1 Length 31mm	L2 Length 12mm	L3 Length 14.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-10-06C	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

adapter's got a DIN tube side marked M16 x 1.5 and a BSPT side at 3/8", that right for part number 5011L-10-06C?

Question by: Curt B on Oct 21, 2025, 8:17 PM

Yeah, that matches up. One end is a DIN tube connection with an M16 x 1.5 thread, and the other end is a male BSPT at R 3/8-19, which is the standard 3/8" British taper thread. Both sides are male, and the part is straight, so there's no angle to account for when you're fitting it in.

Answer by: Customer Support on Oct 23, 2025, 12:20 PM

got a din tube fitting that’s M16 x 1.5 on one end, will this adapter match up to it?

Question by: Clint Y on Nov 30, 2025, 8:41 PM

On the DIN tube side, it’s a male M16 x 1.5 connection (Side 1 callout M16 x 1.5, size L10), so it’s meant to mate with a matching DIN tube port that takes that thread.

Answer by: Customer Support on Dec 2, 2025, 7:03 PM
