Din X Male Bspt Complete

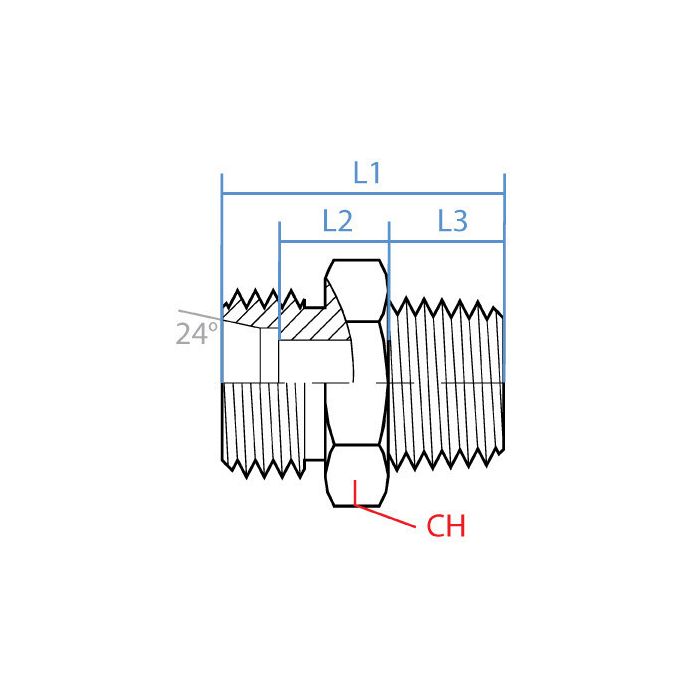

CH Width 17mm	L1 Length 28mm	L2 Length 9mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-10-04C	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a DIN tube end up to a BSPT port, is this the piece that goes from M16 x 1.5 (L10) over to 1/4" R 1/4-19?

Question by: Earl C on Nov 11, 2025, 8:08 PM

Built for mixing standards in one straight-through connection, it mates an M16 x 1.5 DIN tube end (L10) on one side to a 1/4 inch male BSPT thread on the other, called out as R 1/4-19.

Answer by: Customer Support on Nov 13, 2025, 8:18 AM

fitting's got an M16 x 1.5 DIN side and I need to tie into a 1/4 inch BSPT port, this the right piece for that?

Question by: Rex B on Sep 12, 2025, 7:18 PM

That's what this one's built for. One end is an M16 x 1.5 DIN tube connection at L10 sizing, and the other terminates in a 1/4" male BSPT thread to the R 1/4-19 standard. Straight-through body, no angle to it, so flow goes right from one side to the other without any redirection. Steel construction throughout, so it holds up fine in working hydraulic service.

Answer by: Customer Support on Sep 14, 2025, 6:44 AM
