Din X Male Bspt

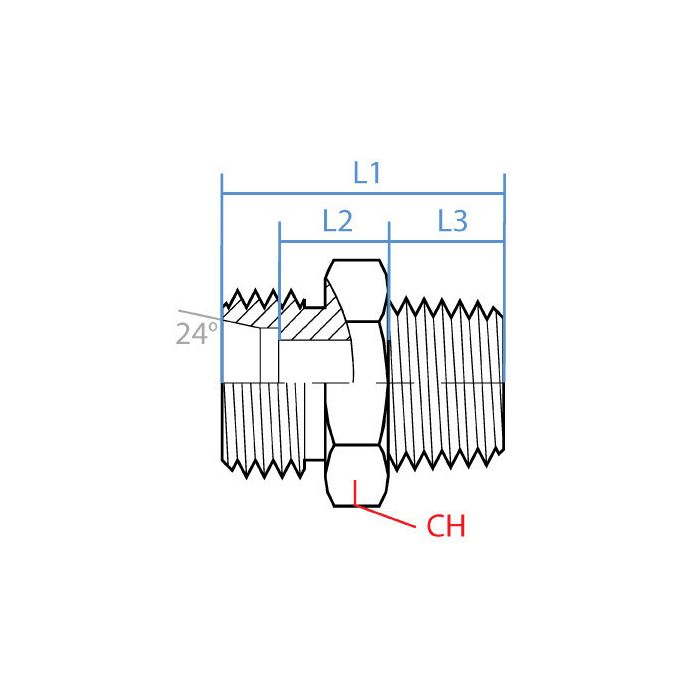

CH Width 17mm	L1 Length 27mm	L2 Length 8mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-08-06	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a system running R 3/8 BSPT ports and need to tie in some DIN tube lines, this adapter work for that kind of crossover?

Question by: Ralph M on Mar 15, 2026, 9:13 AM

That's exactly the situation this part was built for. One end is an M14 x 1.5 DIN tube connection, and the other is an R 3/8-19 BSPT male thread, so bridging those two standards is the whole point of it. It's a straight configuration, steel construction, and comes from Adaptall, which has a solid reputation for holding up in hydraulic setups where a leaky fitting ain't an option.

Answer by: Customer Support on Mar 16, 2026, 8:21 PM

trying to swap fittings on a line, what exactly are the two ends on this adapter?

Question by: Jimmy M on Apr 10, 2025, 4:25 PM

On one side you have an M14 x 1.5 DIN tube connection with a male end. The other side is a male BSPT pipe thread, R 3/8 - 19.

Answer by: Customer Support on Apr 12, 2025, 7:02 AM
