Din X Male Bspt Complete 5011L-08-04C

Specifications

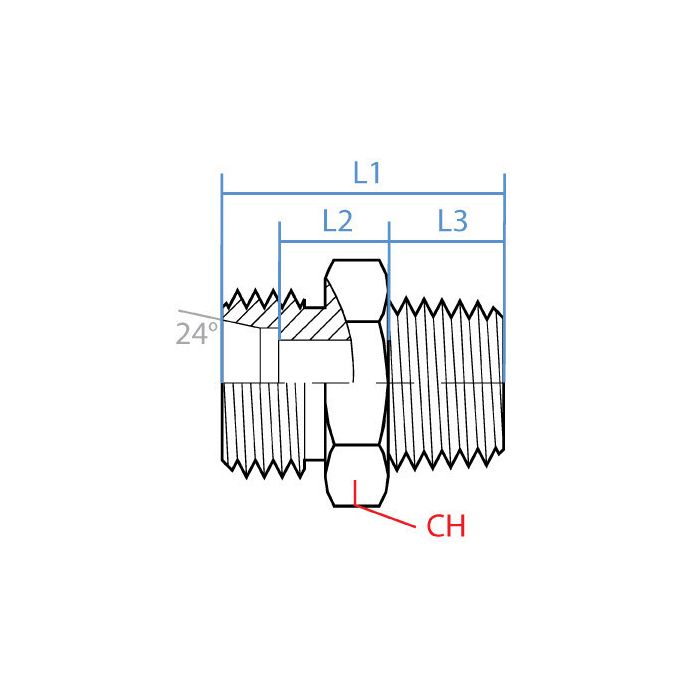

CH Width 14mm	L1 Length 27mm	L2 Length 8mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number MI-08733954, Alternate Part Number MINO-03671X96010	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-08-04C	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system on farm equipment, ya know, dealing with the weather and all?

Question by: Wayne W on Feb 22, 2026, 5:57 PM

Manufactured with high-quality steel, this fitting is designed to provide durability and longevity, even in demanding industrial environments, which would include outdoor exposure on farm equipment.

Answer by: Customer Support on Feb 23, 2026, 8:51 PM

fitting's got an M14 x 1.5 on one end and I need to tie into a 1/4" BSPT male port on the other side -- this the right part for that?

Question by: Patty H on Nov 16, 2025, 6:55 AM

Yeah, that's exactly what this one does. One end is M14 x 1.5 male DIN tube, the other is 1/4" male BSPT with an R 1/4-19 thread. Both sides are male, so make sure your mating connections are female on each end. The fitting runs 27mm in total length and is made from steel, so it holds up well in standard industrial setups.

Answer by: Customer Support on Nov 18, 2025, 8:23 AM
