Din X Male Bspt

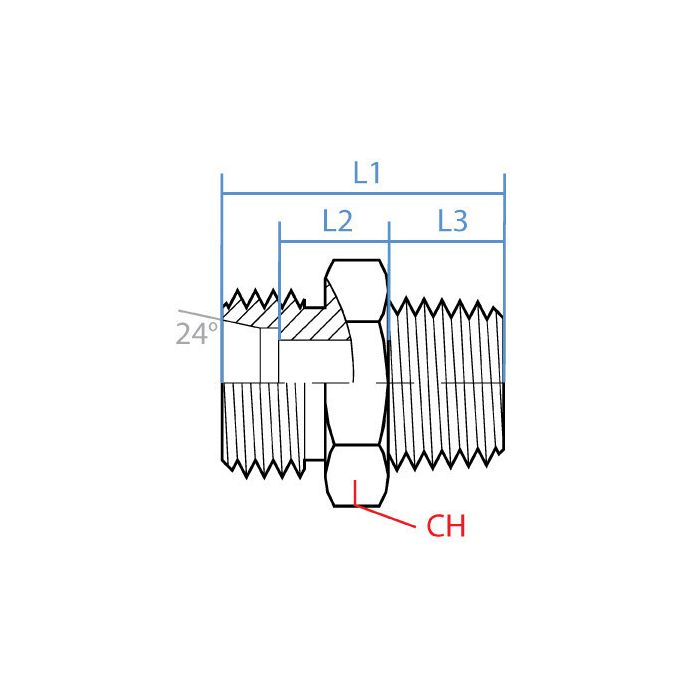

CH Width 14mm	L1 Length 27mm	L2 Length 8mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-06-04	Product Weight 0.02 lbs

Product Questions & Answers 2

Product Questions & Answers

i’ve got a metric DIN tube end that’s M12 x 1.5, will this fitting get me over to a 1/4 BSPT male?

Question by: Carl F on Sep 10, 2025, 8:02 PM

It’s meant for exactly that kind of changeover. One side is a M12 x 1.5 DIN tube connection, and the other side is a 1/4 inch BSPT male thread called out as R 1/4 - 19.

Answer by: Customer Support on Sep 12, 2025, 6:23 PM

What size DIN tube does this fitting connect to, and what's on the other end of it?

Question by: Diane H on Apr 26, 2025, 11:51 AM

One side takes an M12 x 1.5 DIN tube connection, male, and the other end is a 1/4 inch BSPT male thread. So you're adapting a metric DIN tube side over to a British standard tapered pipe thread on the outlet. Both ends are male, straight through, no bends or offsets.

Answer by: Customer Support on Apr 28, 2025, 11:45 AM
