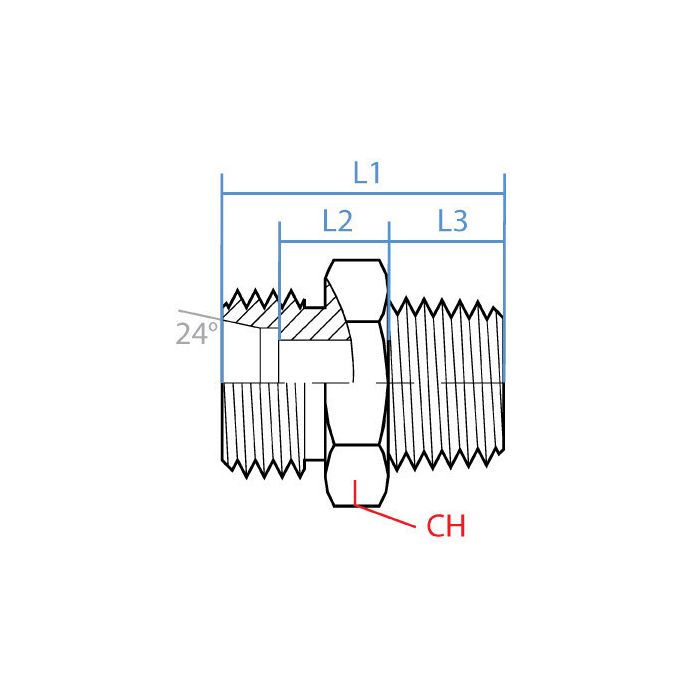

Din X Male Bspt Complete

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011L-06-02C	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread size on the BSPT end of this fitting, and is it a taper thread or straight?

Question by: Bonnie H on Sep 16, 2025, 5:36 PM

The BSPT side is a 1/8" male taper thread, with a callout of R 1/8 - 28. BSPT is always a taper form, so it seals on the thread itself rather than relying on a face seal or O-ring. That makes it common in British-standard ported equipment and a fair amount of older industrial machinery.

Answer by: Customer Support on Sep 18, 2025, 11:56 AM
