Din X F Bspp Solid 5009S-06-04

Specifications

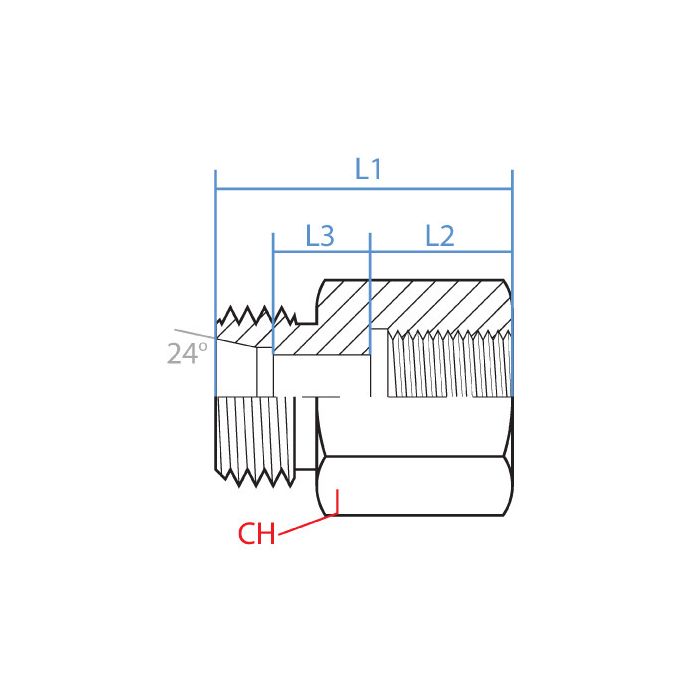

CH Width 19mm	L1 Length 33mm	L2 Length 17mm	L3 Length 9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5009S-06-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment running DIN S06 fittings and need to tie into a BSPP 1/4" port on a valve block. This straight adapter gonna bridge that gap without needing extra bits in between?

Question by: Cheryl M on Oct 15, 2025, 7:44 PM

That's exactly what this fitting handles. One end is a DIN tube connection, size S06 with an M14 x 1.5 thread, and the other is a female BSPP port at G 1/4-19. Run your DIN line straight in on one side and thread your BSPP male fitting into the other. No additional adapters needed for that conversion. It's a solid steel construction, straight configuration, so you're not adding any bends or offsets to the assembly.

Answer by: Customer Support on Oct 17, 2025, 6:05 AM

Will this fitting hold up alright with regular hydraulic use, or is it more for light duty?

Question by: Lynn Y on Jan 5, 2026, 3:31 PM

Constructed from steel, the Adaptall fitting is designed to handle typical hydraulic pressures within standard operating conditions.

Answer by: Customer Support on Jan 6, 2026, 4:38 PM

trying to match up a fitting i pulled off, is this one the straight din S06 M14 x 1.5 to a 1/4 female bspp (G 1/4-19)?

Question by: Roy M on Oct 3, 2025, 9:58 AM

For fit confirmation, the connections on this adapter are DIN tube size S06 with an M14 x 1.5 male end on one side, and a 1/4 inch female BSPP end on the other with G 1/4-19 threads.

Answer by: Customer Support on Oct 5, 2025, 9:11 AM
