Din X F Bspp Solid

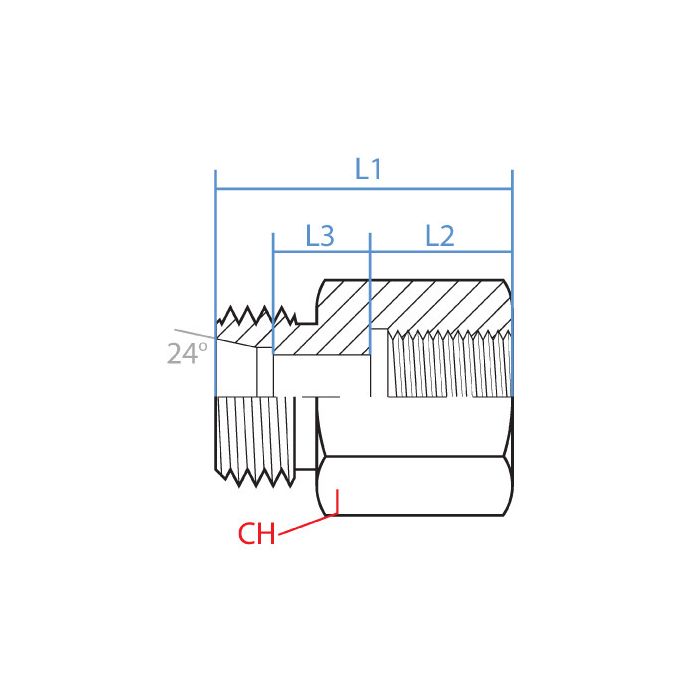

CH Width 60mm	L1 Length 53.5mm	L2 Length 28.5mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size L42	Side 1 Type Din Tube	Side 2 Callout G 1-1/2 - 11	Side 2 Gender F	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5009L-42-24	Product Weight 1.18 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a M52 x 2.0 DIN tube line into a G 1-1/2 - 11 BSPP port, is this the right adapter?

Question by: Lee S on Jul 16, 2025, 8:13 AM

For that kind of thread mix, it matches up as a straight steel adapter with an M52 x 2.0 male DIN tube connection on one side and a G 1-1/2 - 11 female BSPP connection on the other.

Answer by: Customer Support on Jul 17, 2025, 3:02 PM

what's the thread size on the male end of this adapter, and does it match up with standard DIN tube fittings?

Question by: Daryl R on May 31, 2025, 2:33 PM

The male side runs M52 x 2.0, which is a metric DIN tube connection. That's a large-diameter fitting, so as long as your tube end or mating component is spec'd for that same M52 x 2.0 DIN thread, you're good to go. The female end on the opposite side is G 1-1/2 - 11 BSPP, so this adapter is purpose-built for bridging those two thread standards in a straight-line configuration.

Answer by: Customer Support on Jun 1, 2025, 7:34 PM
