Din X F Bspp Complete 5009L-08-04C

Specifications

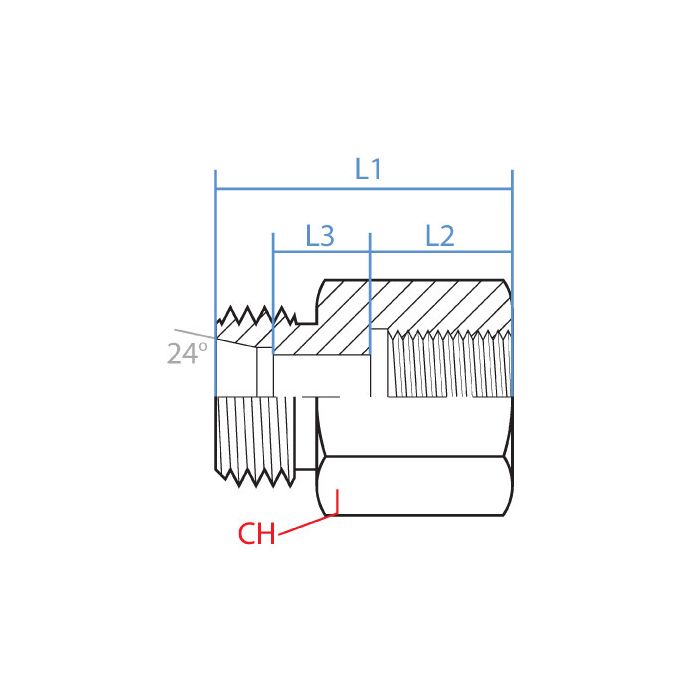

CH Width 19mm	L1 Length 31mm	L2 Length 17mm	L3 Length 7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5009L-08-04C	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a DIN fitting to a BSPP port?

Question by: Rex R on Jan 24, 2026, 6:15 AM

Yes, this Adaptall fitting is specifically designed to connect a DIN tube fitting to a BSPP threaded port. The side one features an M14 x 1.5 male DIN tube end, while side two has a G 1/4-19 female BSPP port.

Answer by: Customer Support on Jan 25, 2026, 7:48 AM

got a piece of equipment with a G 1/4 BSPP port on it and need to tie into some DIN tube lines -- does this fitting handle that crossover in one shot?

Question by: Clint T on Oct 17, 2025, 10:43 AM

That's what this adapter is built for. One end is a G 1/4-19 female BSPP port and the other is an M14 x 1.5 male DIN tube end sized at L08, so you can bridge those two standards without stacking multiple fittings together. Steel construction, straight configuration, and a 19mm wrench flat means you can torque it down with standard tooling and move on.

Answer by: Customer Support on Oct 19, 2025, 6:16 AM

trying to hook a din tube end into a bsp port, is this the right adapter for that?

Question by: Rusty M on Dec 6, 2025, 2:11 PM

For tying two standards together, this fitting goes from an M14 x 1.5 male DIN tube end (L08) on one side to a G 1/4-19 female BSPP port on the other, all in a straight adapter.

Answer by: Customer Support on Dec 7, 2025, 4:25 PM
