Din X F Bspp Solid

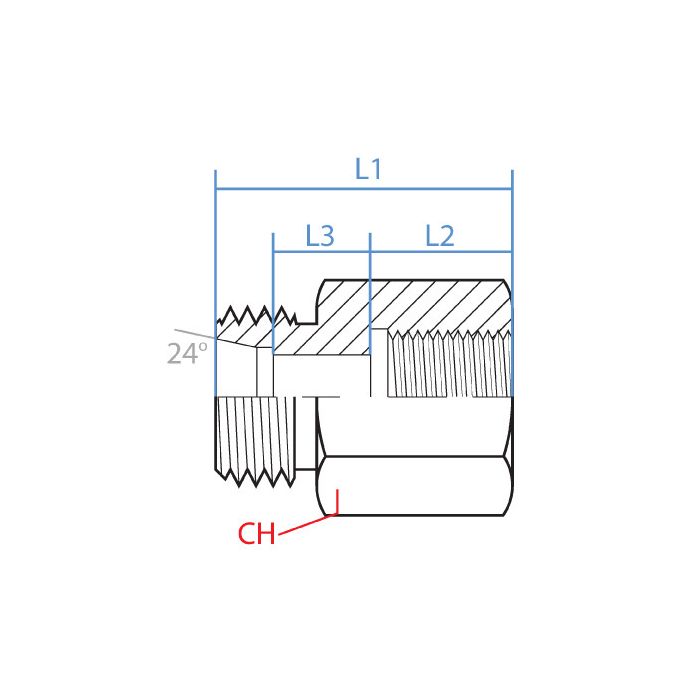

CH Width 19mm	L1 Length 31mm	L2 Length 17mm	L3 Length 7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5009L-08-04	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here adapter fit my setup? I need a M14 x 1.5 male DIN tube on one side and a G 1/4 - 19 female BSPP on the other.

Question by: Brent C on Dec 26, 2025, 2:46 PM

This adapter is made to connect exactly those two fitting types. The M14 x 1.5 male DIN tube fits one side, and the G 1/4 - 19 female BSPP fits the other.

Answer by: Customer Support on Dec 28, 2025, 6:50 AM

Trying to match up fittings here, is this the one that goes from M14 x 1.5 male DIN tube over to a G 1/4-19 female BSPP port?

Question by: Neil T on Jun 23, 2025, 8:21 AM

For connecting those two thread standards, it’s a straight steel adapter with an M14 x 1.5 male DIN tube end on one side and a G 1/4 - 19 female BSPP thread on the other.

Answer by: Customer Support on Jun 24, 2025, 9:18 PM
