Din X Male Npt

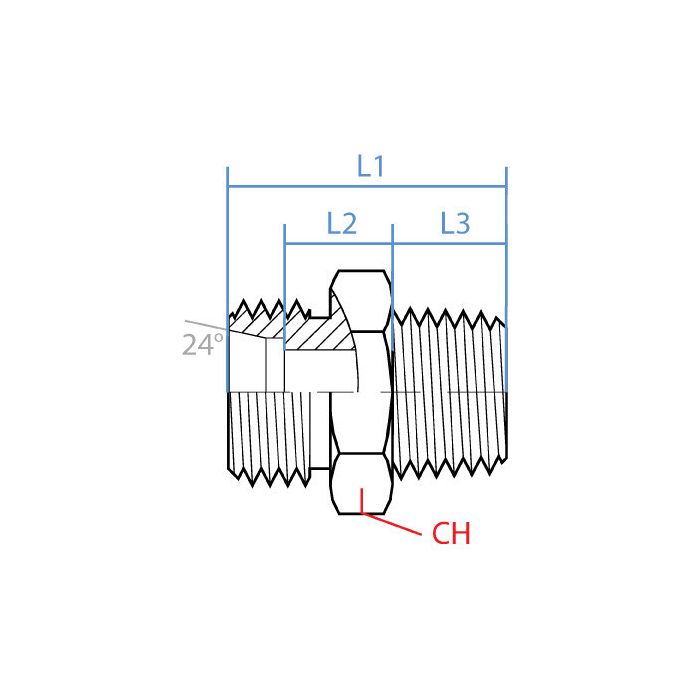

CH Width 55mm	L1 Length 65mm	L2 Length 23mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size S38	Side 1 Type Din Tube	Side 2 Callout 1-1/2 - 11.5 NPTF	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007S-38-24	Product Weight 1.28 lbs

Product Questions & Answers 2

Product Questions & Answers

So this is a DIN tube on one side, and NPT on the other? Just want to make sure I'm understanding it right.

Question by: Warren H on Jan 9, 2026, 7:49 PM

That's correct. This Adaptall fitting adapts between a DIN tube connection and a male NPT thread.

Answer by: Customer Support on Jan 11, 2026, 4:16 PM

got a din tube end that’s M52 x 2.0, will this adapter mate up to it and still give me 1-1/2 NPTF on the other side?

Question by: Rod O on Jul 1, 2025, 2:58 PM

On the DIN side, it is a male M52 x 2.0 connection with size S38, and the other end is a male 1-1/2 inch NPTF with a 1-1/2 - 11.5 callout, so it matches those two connection types and sizes.

Answer by: Customer Support on Jul 3, 2025, 1:40 PM
