Din X Male Npt Complete

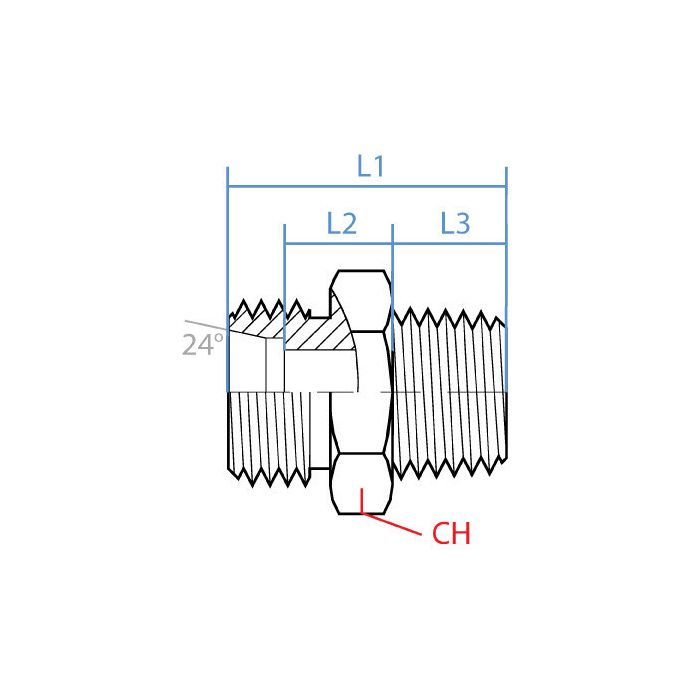

CH Width 27mm	L1 Length 39mm	L2 Length 11.5mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-18-08C	Product Weight 0.33 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a system running M26 x 1.5 DIN tube fittings on one end and need to tie into a 1/2 inch NPTF port, this adapter cover that transition?

Question by: Hubert J on Jan 12, 2026, 1:40 PM

That's what this one's built for. One side is M26 x 1.5 male DIN tube, the other is 1/2-14 NPTF male, so it bridges those two thread standards in a straight configuration. Steel construction, no adjustable ends or check valves involved, just a clean fixed adapter. Part number is 5007L-18-08C if you need to confirm it against your parts list.

Answer by: Customer Support on Jan 14, 2026, 8:51 AM

Reckon this adapter will hold up okay in a hydraulic setup?

Question by: Rick H on Mar 14, 2026, 4:50 PM

Steel construction makes this adapter a solid choice for hydraulic applications, offering both durability and reliable performance under pressure.

Answer by: Customer Support on Mar 16, 2026, 8:44 AM
