Din X Male Npt Complete

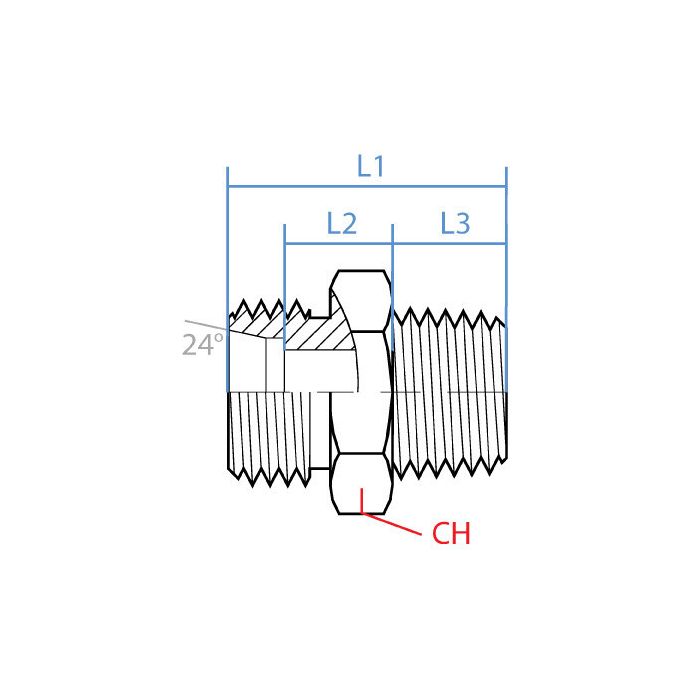

CH Width 19mm	L1 Length 32mm	L2 Length 10mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-12-04C	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting goes from a DIN tube side to a male NPT -- is that right? just want to make sure i got the connections figured out before i order

Question by: Neil F on Sep 28, 2025, 11:54 AM

Correct on both counts. Side 1 is a DIN tube connection with an M18 x 1.5 thread callout and an L12 size. Side 2 is a male NPT, specifically a 1/4 inch 18 NPTF thread. So yes, this fitting bridges a DIN tube line over to a 1/4 inch male NPT port, and it runs straight through with no angle or offset.

Answer by: Customer Support on Sep 30, 2025, 6:29 AM
